01 - Control Board Parts


02 - Door Parts


03 - Ventilation Parts


04 - Interior & Airflow Parts


05 - Rack And Turntable Parts


06 - Cabinet And Installation Parts


07 - Convection Parts

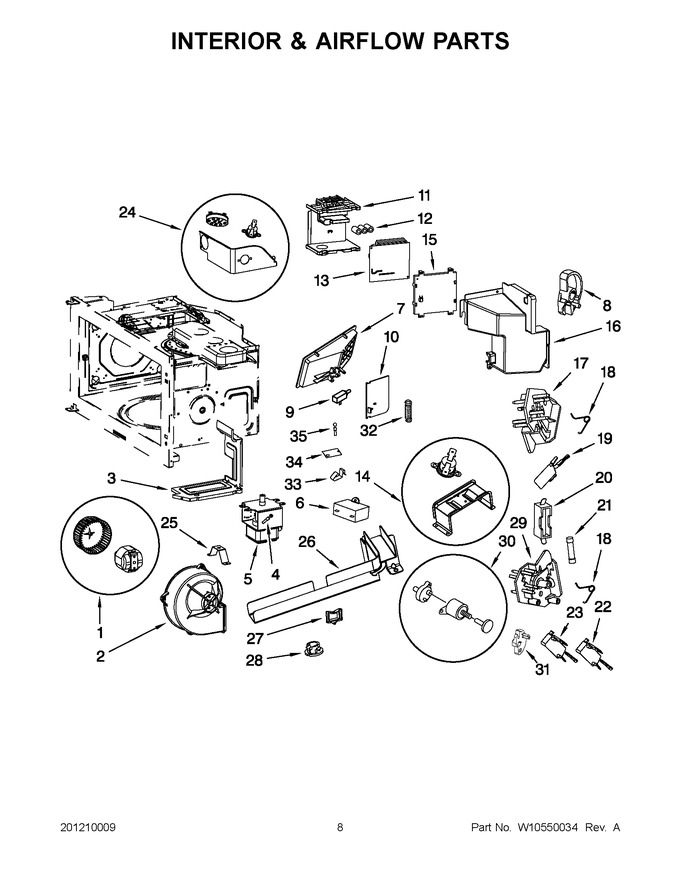

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206075		Fan Motor Assembly				$ 336.38
2	8206076		Housing, Fan (top)				$ 120.45
3	8206077		Plate, Divider		Appelez-nous	-
4	W10115577		Thermistor, Magnetron				$ 160.72
5	8206079		Magnetron			Immediately	$ 333.10
6	W11405831		Capacitor, Hood Motor   (Replaces: W10245191)				$ 44.36
7	W10244757		Housing, Valve		Appelez-nous	-
8	W10113786		Cam Plate, Upper				$ 6.59
9	8206082		Solenoid		Appelez-nous	-
10	W10244758		Lid, Valve		Appelez-nous	-
11	W10282795		Cover, Inverter		Appelez-nous	-
12	W10252581		Ferrite Ring		Appelez-nous	-
13	W10217711		Inverter   (Replaces: 8206087)			Immediately	$ 289.63
14	8206035		Thermostat, Base Assembly				$ 192.36
15	W10282808		Holder, Inverter		Appelez-nous	-
16	8206494		Air Guide, Magnetron				$ 54.99
17	W10143956		Support, Interlock				$ 7.55
18	8206091		Spring, Interlock				$ 52.76
19	W10211972		Switch, Micro			Immediately	$ 52.40
20	W10117908		Holder, Fuse				$ 52.71
21	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 45.85
22	W10269458		Switch, Micro   (Replaces: W10211973)			Immediately	$ 40.11
23	W10211974		Switch, Micro			Immediately	$ 60.44
24	8206026		Humidity Sensor & Thermostat Assembly				$ 220.58
25	8206031		Support, Air Guide		Appelez-nous	-
26	8206477		Protector, Wire		Appelez-nous	-
27	8206023		Sensor, Convection Temperature				$ 63.36
28	8206038		Clip, Round		Appelez-nous	-
29	8206209		Support, Interlock & Thermostat Assembly				$ 7.30
30	8206210		Piston Assembly Temperature				$ 80.93
31	W10244759		Cam Plate, Lower				$ 6.59
32	8206084		Spring, Valve		Appelez-nous	-
33	8206223		Clip				$ 54.51
34	8206224		Cover, Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
