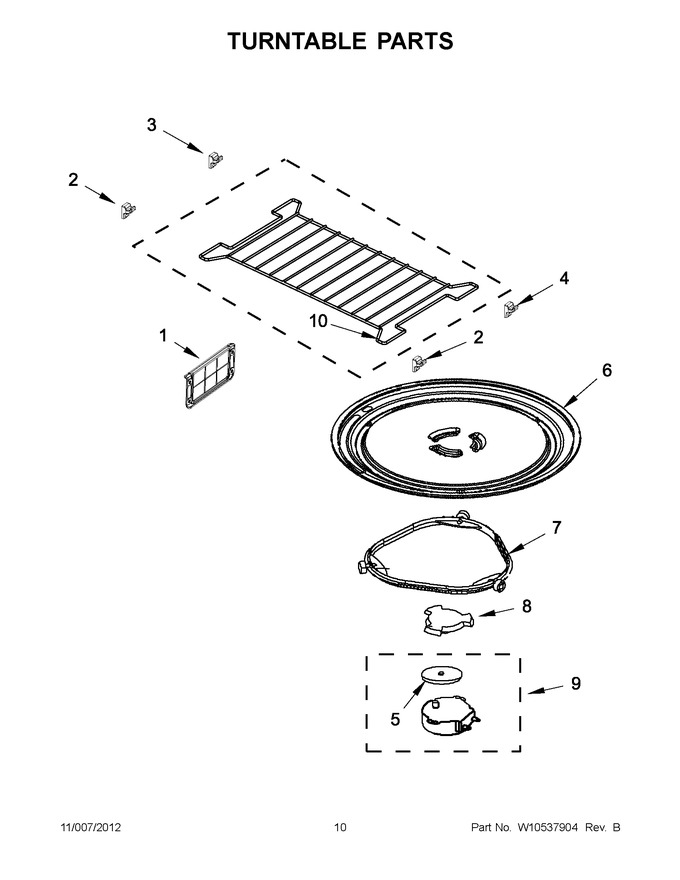

05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10245224 | Cover, Inlet Mica |
|
$ 67.17 | |||||
| 2 | W10840759 | Hook, Microwave Rack (left Front And Right Front) (Replaces: W10245207) |
|
- | |||||
| 3 | W10840794 | Hook, Microwave Rack (left Rear) (Replaces: W10245208) |
|
$ 24.76 | |||||
| 4 | W10840795 | Hook, Microwave Rack (right Rear) (Replaces: W10245209) |
|
$ 26.04 | |||||
| 5 | 8184109 | Seal, Waterproof |
|
$ 7.30 | |||||
| 6 | 4393799 | Turntable |
|
$ 82.90 | |||||
| 7 | W11252182 | Ring, Turntable With Rollers (Replaces: W10435114) |
|
Immediately | $ 39.55 | ||||
| 8 | W10435116 | Driver, Turntable Coupler |
|
$ 34.46 | |||||
| 9 | WPW10466420 | Motor, Turntable (Replaces: W10210848) |
|
Immediately | $ 45.71 | ||||
| 10 | WPW10447234 | Rack, Microwave (Replaces: W10447234) |
|
$ 19.22 |
