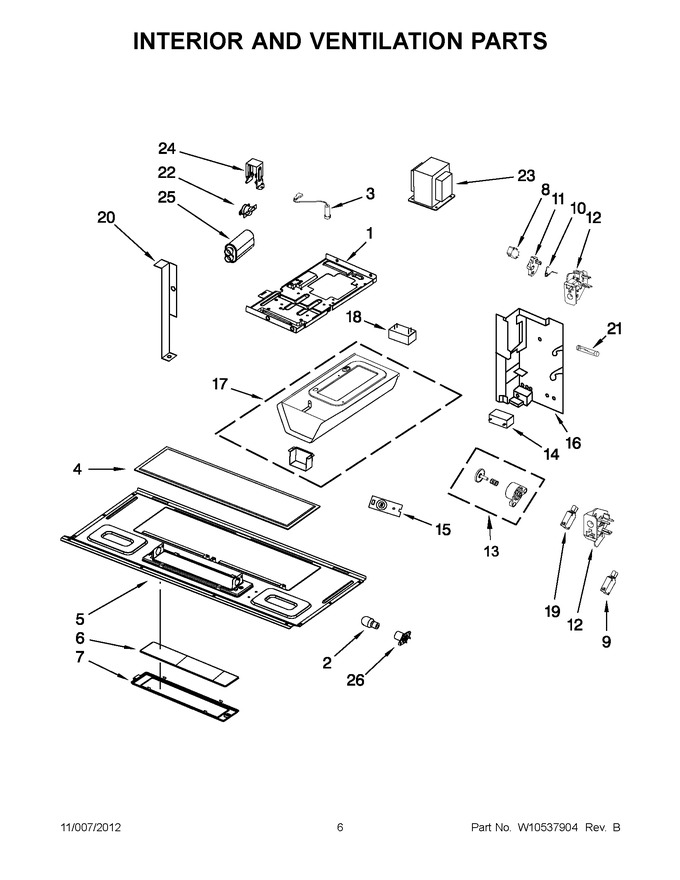

03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10245184 | Chassis |
|
- | |||||
| 2 | W10709921 | Lamp, Halogen (Replaces: W10208564) |
|
Immediately | $ 21.22 | ||||
| 3 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 5 | W10250588 | Plate, Bottom |
|
$ 233.50 | |||||
| 6 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 334.23 | |||||
| 7 | W10210873 | Holder, Glass |
|
$ 5.75 | |||||
| 8 | W10269460 | Microswitch V15t16-cp200/no |
|
Immediately | $ 45.95 | ||||
| 9 | W10269458 | Microswitch V15t16-cc200/nc |
|
Immediately | $ 40.11 | ||||
| 10 | W10156812 | Spring, Interlock |
|
Immediately | $ 12.14 | ||||
| 11 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 17.83 | ||||
| 12 | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 8.07 | ||||
| 12 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 22.37 | ||||
| 13 | W10197758 | Piston Assembly |
|
Immediately | $ 88.91 | ||||
| 14 | W11405831 | Capacitor, Hood Motor (Replaces: W10245191) |
|
$ 42.25 | |||||
| 15 | W10163422 | Thermistor (pcba) |
|
$ 171.14 | |||||
| 16 | W10245193 | Plate, Side |
|
$ 25.63 | |||||
| 17 | W10310720 | Chassis Assembly |
|
- | |||||
| 18 | W10342990 | Resistor, Cement |
|
$ 62.69 | |||||
| 19 | W10727360 | Microswitch V15t16-cz200/nc/no (Replaces: W10269457) |
|
Immediately | $ 5.82 | ||||
| 20 | W10313275 | Bracket, Top Cavity |
|
$ 33.92 | |||||
| 21 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 22 | W10864742 | Thermostat, Cavity 125/-35 Celcius (Replaces: W10245195) |
|
$ 84.45 | |||||
| 23 | W10245185 | Transformer, High Voltage |
|
- | |||||
| 24 | W10532063 | Bracket, Capacitor (Replaces: W10156817) |
|
$ 28.28 | |||||
| 25 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 186.54 | |||||
| 26 | W10250585 | Holder, Lamp |
|
$ 5.97 |
