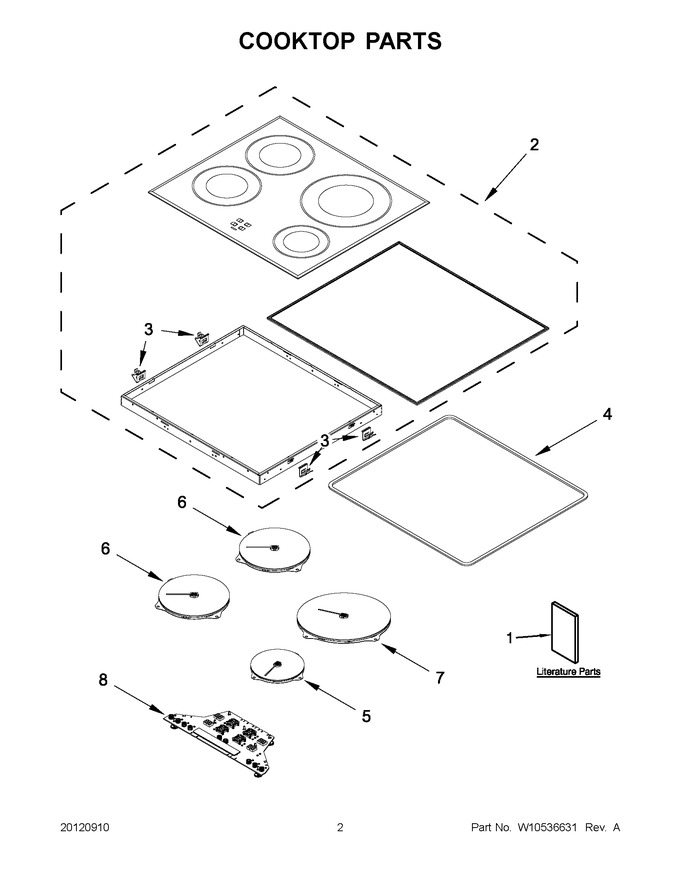

01 - Cooktop Parts
02 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10536667 | Use And Care Guide |
|
- | |||||
| 1 | W10536668 | Installation Instructions |
|
- | |||||
| 2 | W10483502 | Cooktop, Glass (stainless) |
|
- | |||||
| 3 | W10483503 | Spring, Clamping |
|
$ 8.53 | |||||
| 4 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 163.56 | ||||
| 5 | W11672508 | Hotplate, Right Front (hotplate 145mm 1800/1400 Watts) (Replaces: W10396547) |
|
$ 257.23 | |||||
| 6 | W10483505 | Hotplate, Left Front And Left Rear (hotplate 180mm 2500/1800 Watts) |
|
$ 105.80 | |||||
| 7 | WPW10328391 | Hotplate, Right Rear (hotplate 240mm 3700/2300 Watts) (Replaces: W10328391) |
|
Immediately | $ 374.30 | ||||
| 8 | W10533017 | User Interface Board (Replaces: W10483508) |
|
$ 328.84 |
