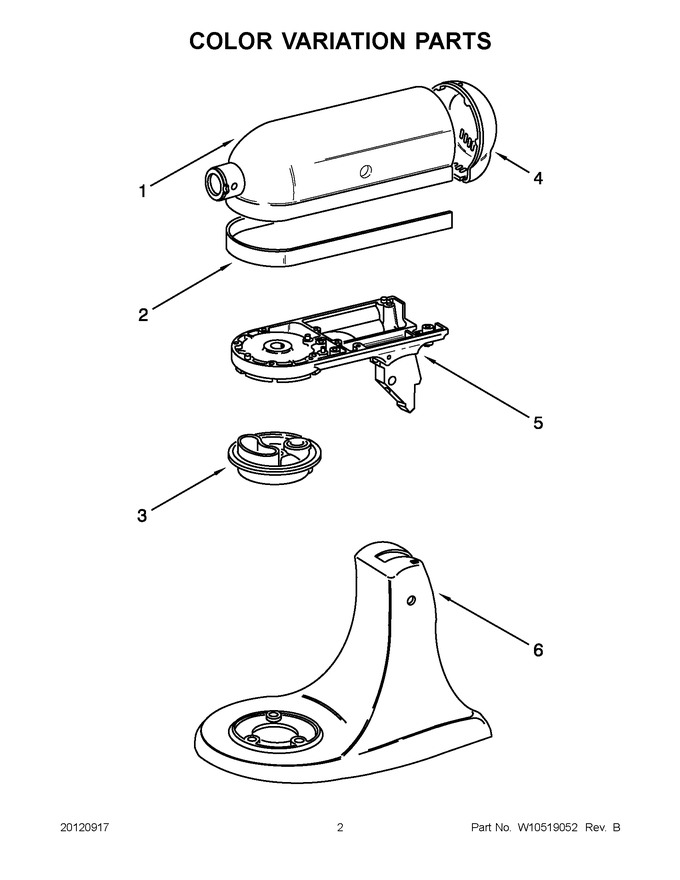

01 - Color Variation Parts
02 - Base And Pedestal Unit
03 - Case, Gearing And Planetary Unit
04 - Motor And Control Unit Parts
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP240291-21 | Motor Housing (empire Red) (Replaces: 240291-21) |
|
$ 101.29 | |||||
| 1 | W10349279 | Motor Housing (silver) |
|
$ 105.44 | |||||
| 2 | 9706916 | Trim Band (black) |
|
- | |||||
| 3 | W11084831 | Planetary-empire Red (Replaces: 240286-23) |
|
$ 27.92 | |||||
| 3 | W10349281 | Planetary (silver) |
|
- | |||||
| 4 | W11084313 | End Cover-empire Red (Replaces: 240253-22) |
|
$ 29.89 | |||||
| 4 | W10348293 | End Cover (silver) |
|
- | |||||
| 5 | WP240350-84 | Lower Gearcase-empire Red (Replaces: 240350-84) |
|
$ 65.91 | |||||
| 5 | W10349276 | Lower Gearcase (silver) |
|
- | |||||
| 6 | W11131262 | Pedestal With Feet (empire Red) (Replaces: 9702304) |
|
$ 97.71 | |||||
| 6 | W10348330 | Pedestal With Feet (silver) |
|
- |
