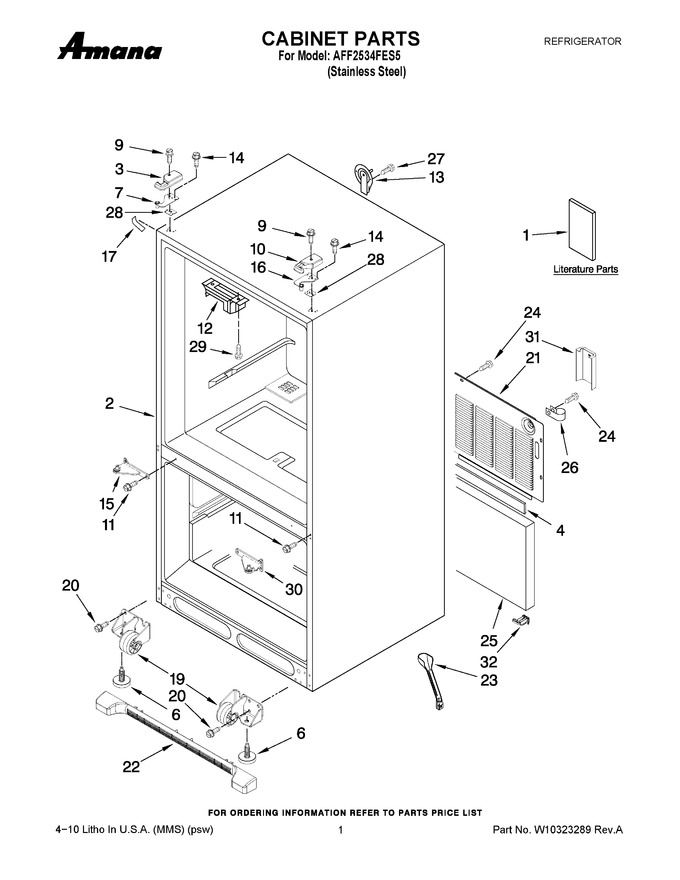

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208785 | Use & Care Guide |
|
- | |||||
| 1 | W10308613 | Tech Sheet |
|
- | |||||
| 1 | W10183286 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10177767 | Cover, Left Hinge (black) |
|
$ 20.10 | |||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 6 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 7 | WP12566607ED | Hinge, Left Top (Replaces: 12566607ED) |
|
$ 81.98 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | 12684202B | Cover, Right Hinge (black) |
|
- | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 12 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W10918164 | Hinge, Center (lt) Black) (Replaces: 13000007ED) |
|
$ 82.38 | |||||
| 16 | WP12566606ED | Hinge, Right Top (Replaces: 12566606ED) |
|
Immediately | $ 42.42 | ||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 19.93 | ||||
| 19 | W11820444 | Roller Assy. (left) (Replaces: W10275850) |
|
Immediately | $ 33.62 | ||||
| 19 | W11820445 | Roller Assy. (right) (Replaces: W10275849) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (4) (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | W10211854 | Cover, Unit |
|
$ 160.53 | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561) |
|
$ 139.11 | |||||
| 23 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 41.61 | ||||
| 24 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 25 | 12820505 | Fiber, Acoustic |
|
$ 71.70 | |||||
| 26 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 27 | WP98165 | Screw (Replaces: 12990504V) |
|
$ 7.71 | |||||
| 28 | 12579702 | Shim, Top Hinge |
|
- | |||||
| 29 | WP7101P126-60 | Screw, Block (Replaces: 12990303) |
|
Immediately | $ 7.52 | ||||
| 30 | W10918164 | Hinge, Center (rt) Black (Replaces: 13000008ED) |
|
$ 82.38 | |||||
| 31 | W10208592 | Guard, Water Valve |
|
- | |||||
| 32 | W10216614 | Sweep, Water Valve |
|
$ 18.51 |
