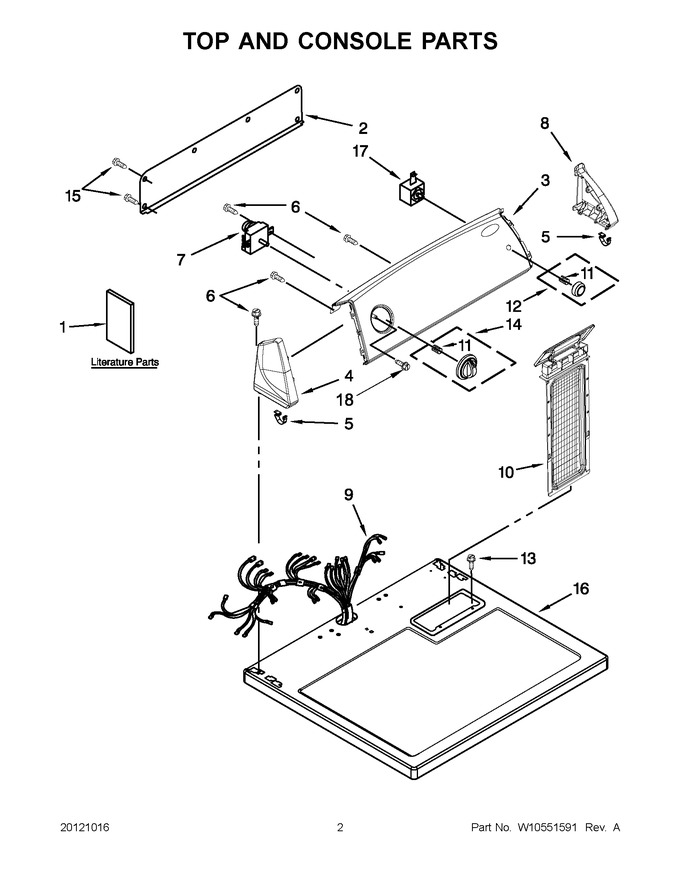

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096987 | Instructions, Installation |
|
- | |||||
| 1 | W10096986 | Guide, Use & Care |
|
- | |||||
| 1 | W10299860 | Wiring Diagram |
|
- | |||||
| 2 | W10103406 | Panel, Rear Console |
|
$ 121.78 | |||||
| 3 | W10115487 | Panel, Console & Control Bracket Assembly |
|
- | |||||
| 4 | WP8565957 | Endcap Assembly, Left Hand (white) (Replaces: 8566035) |
|
$ 58.28 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 7 | WP8299777 | Timer, 60 Hz. (Replaces: 8299777) |
|
$ 344.17 | |||||
| 8 | WP8565954 | Endcap Assembly, Right Hand (white) (Replaces: 8566032) |
|
$ 59.26 | |||||
| 9 | WPW10450292 | Harness, Wiring (Replaces: W10450292) |
|
$ 251.39 | |||||
| 10 | W10874409 | Screen, Lint (white) (Replaces: 8557861) |
|
Immediately | $ 60.31 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | W10034770 | Knob, Push-to-start (white/metallic) |
|
- | |||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W10034750 | Knob, Timer Assembly (white/metallic) |
|
$ 28.27 | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 17 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 18 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 7.93 |
