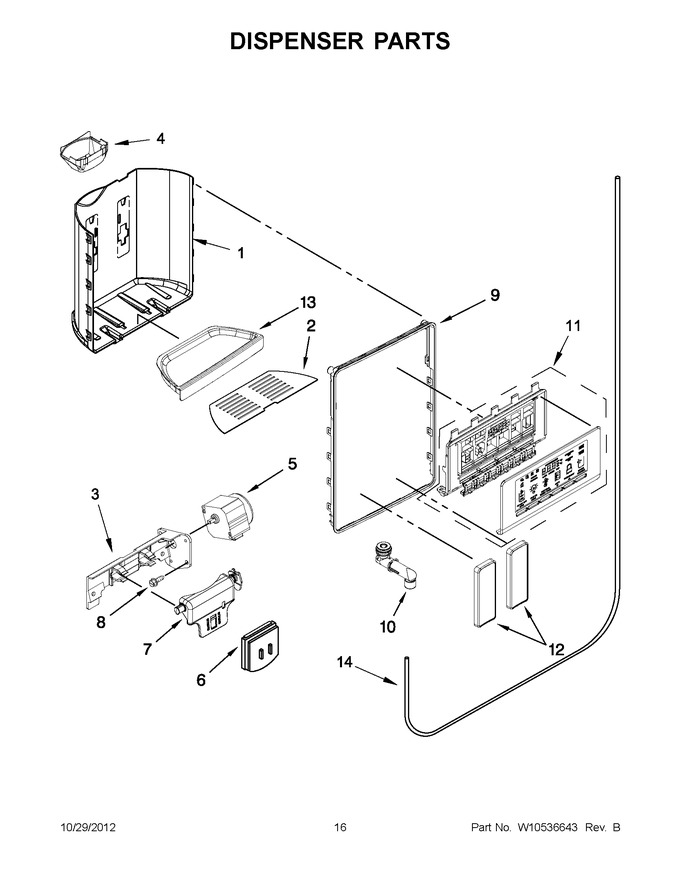

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10276209 | Grate, Drip Tray (Replaces: W10276209) |
|
$ 81.55 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 23.94 | ||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10838126 | Assembly, Separator (Replaces: W10353566) |
|
$ 164.33 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W10457583 | Trim Ring (chrome) |
|
$ 118.21 | |||||
| 10 | WP2305235 | Spigot-body Assembly (Replaces: 2305235) |
|
Immediately | $ 147.07 | ||||
| 11 | WPW10476314 | Assembly, Electronic Control (silver Mirror) (Replaces: W10476314) |
|
$ 395.06 | |||||
| 11 | WPW10489887 | Assembly, Electronic Control (black) (Replaces: W10489887) |
|
$ 393.96 | |||||
| 12 | WPW10346924 | Pad, Ice & Water (grey) (Replaces: W10346924) |
|
Immediately | $ 289.65 | ||||
| 12 | W10317250 | Pad, Ice & Water (white) |
|
$ 321.84 | |||||
| 12 | W11561037 | Pad, Ice & Water (black) (Replaces: W10317253) |
|
$ 82.93 | |||||
| 13 | W10465076 | Tray, Housing (chromium Frost) |
|
- | |||||
| 13 | W10473183 | Tray, Housing (grey) |
|
- | |||||
| 14 | WPW10386778 | Water Tube (Replaces: W10277960) |
|
Immediately | $ 132.74 |
