SELECT A DIAGRAM

01 - Control Panel Parts


02 - Door Parts

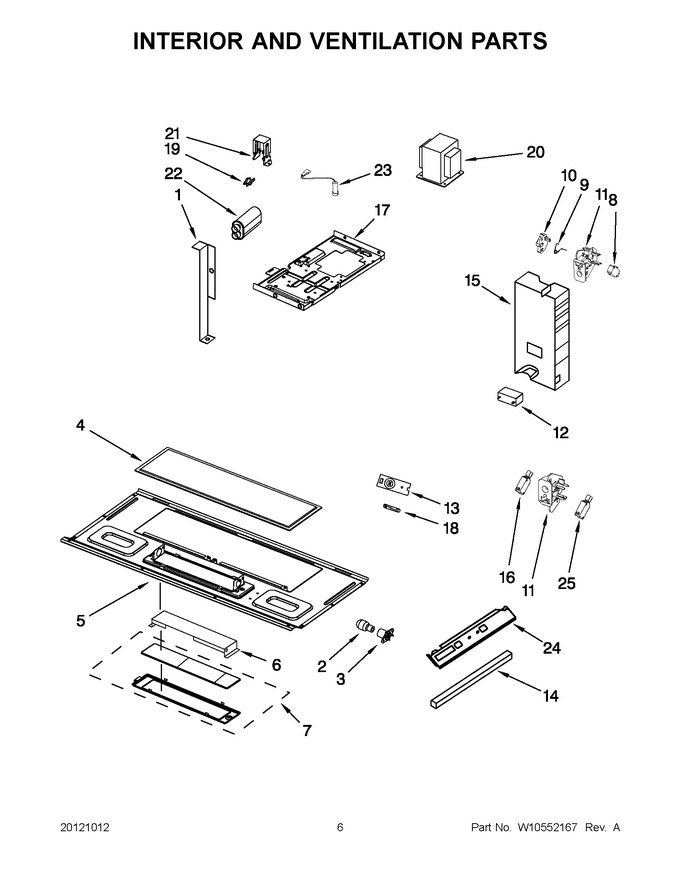

03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top Cavity				$ 32.06
2	8206232A		Lamp 40 Watt   (Replaces: 8206232)			Immediately	$ 6.94
3	W10210871		Holder, Lamp			Immediately	$ 7.16
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 29.33
5	W10245196		Plate, Bottom				$ 231.36
6	W10250586		Reflector, Lamp				$ 130.39
7	W10240330		Assembly, Lamp Glass And Holder				$ 6.80
8	W10269460		Microswitch V15t16-cp200/no			Immediately	$ 41.36
9	W10156812		Spring, Interlock			Immediately	$ 10.93
10	W10562613		Plate, Cam   (Replaces: W10156811)			Immediately	$ 16.05
11	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 7.90
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 21.13
12	W11405832		Capacitor, Hood Motor   (Replaces: W10210855)				$ 25.74
13	W10163422		Thermistor (pcba)				$ 161.73
14	W11523261		Cushion, Ntc   (Replaces: W10313276)		Appelez-nous	-
15	W10448770		Airguide, Base Plate				$ 18.95
16	W10727360		Microswitch V15t16-cz200/nc/no   (Replaces: W10269457)			Immediately	$ 6.17
17	W10269456		Chassis				$ 73.82
18	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 43.34
19	W10269232		Thermostat, Cavity				$ 66.85
20	W10836753		Transformer, High Voltage   (Replaces: W10546703)			Immediately	$ 297.50
21	W10532063		Bracket, Capacitor   (Replaces: W10156817)				$ 26.72
22	8206562		Capacitor, High Voltage			Immediately	$ 183.78
23	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
24	W10476124		Support, Ntc		Appelez-nous	-
25	W10269458		Microswitch V15t16-cc200/nc			Immediately	$ 36.10
