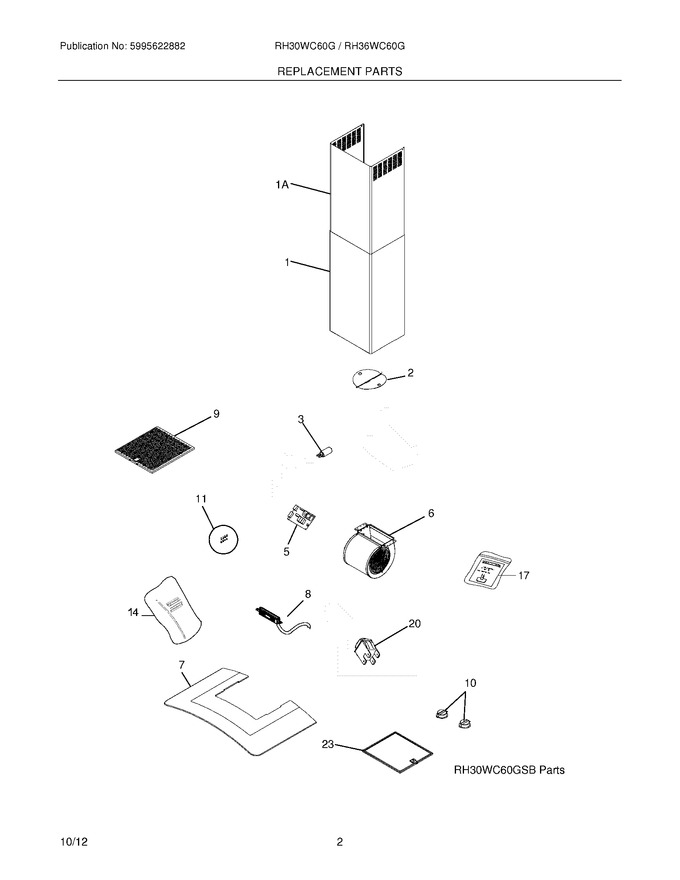

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304466257 | Chimney,duct Cover ,lower Flue |
|
$ 1,028.69 | |||||
| 2 | 5304466258 | Damper,exhaust |
|
$ 115.45 | |||||
| 14 | 5304480606 | Seal Kit,glass ,w/mtg Brackets |
|
$ 162.20 | |||||
| 17 | 5304489881 | Installation Kit,w/hardware ,manual,template |
|
$ 139.36 | |||||
| 1A | 5304466256 | Chimney,duct Cover ,upper Flue |
|
$ 996.92 | |||||
| F10 | 5304488411 | Lamp Assy,halogen ,40w ,120v ,g9 |
|
$ 176.15 | |||||
| F20 | 5304472119 | Switch,on/off |
|
$ 98.81 | |||||
| F23 | 5304466255 | Filter,charcoal ,recirculation |
|
$ 265.52 | |||||
| F3 | 5304464261 | Capacitor |
|
$ 185.12 | |||||
| F5 | 5304464263 | Power Board,pcb ,w/spacers |
|
Immediately | $ 230.18 | ||||
| F6 | 5304466260 | Blower Assembly |
|
$ 1,179.10 | |||||
| F7 | 5304464264 | Canopy,30 Inch ,glass |
|
$ 498.96 | |||||
| F8 | 5304464201 | Control Panel,display ,lcd |
|
$ 348.35 | |||||
| F9 | 5304464265 | Filter,grease |
|
$ 108.76 | |||||
| NI | RHDFW60GS | Recirculation Kit,chimney/wall (Replaces: 5304466744) |
|
$ 255.15 |
