SELECT A DIAGRAM

01 - Top And Cabinet Parts

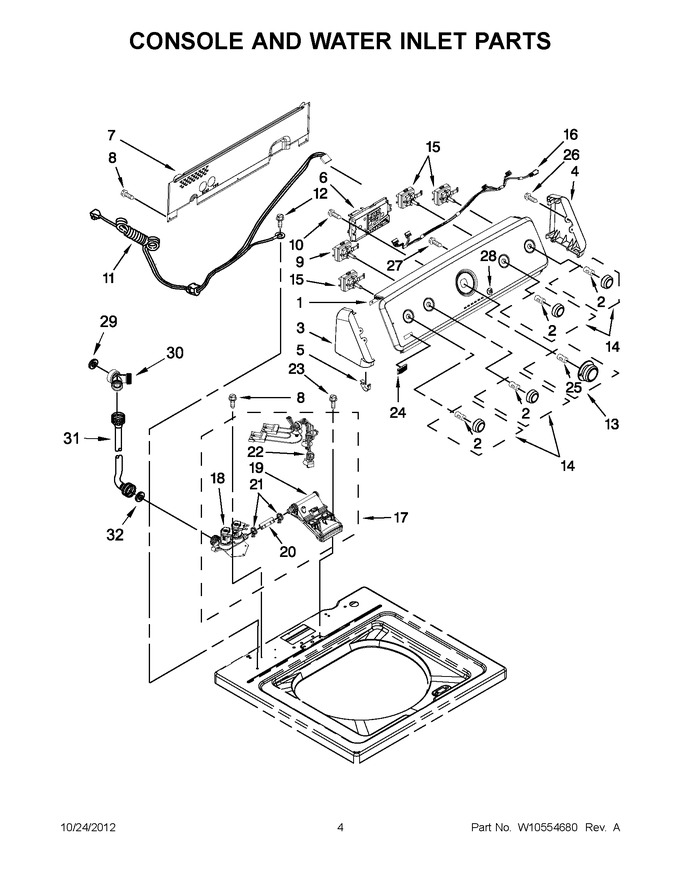

02 - Console And Water Inlet Parts


03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10365086		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
3	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 70.85
4	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 71.16
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10480701		Control Unit Assembly, Machine & Motor		Appelez-nous	-
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10420985)				$ 251.29
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 181.40
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
11	W10422755		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.76
13	WPW10317454		Knob, Timer (grey)   (Replaces: W10317454)				$ 60.45
14	WPW10317455		Knob, Control (grey)   (Replaces: W10317455)				$ 60.31
15	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 173.43
16	W10291177		Harness, Upper (temperature)				$ 145.40
17	WPW10345523		Inlet Assembly, Water   (Replaces: W10345523)				$ 199.75
18	WPW10339585		Valve, Water Mixing   (Replaces: W10339585)				$ 224.53
19	WPW10441423		Vacuum Break   (Replaces: W10441423)				$ 86.03
20	W10238347		Hose, Vacuum Break				$ 24.63
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 8.40
22	WPW10344775		Harness, Valve   (Replaces: W10344775)				$ 163.34
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.19
24	W10323734		Badge, Assembly				$ 60.90
25	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.81
26	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
27	3400073		Screw		Appelez-nous	-
28	WPW10251309		Pushbutton, Start   (Replaces: W10251309)			Immediately	$ 72.38
29	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 7.70
30	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194210)			Immediately	$ 24.09
30	WP89503		Hose, Water Inlet (hot Water)   (Replaces: W10194211)			Immediately	$ 24.09
31	WPW10269488		Connector, Hose Y   (Replaces: W10269488)				$ 85.37
32	WP3357450		Washer, Hose Adapter   (Replaces: 3357450)				$ 11.01
NI	W10446855		Cord, Power (10a Cord Lock) (parts Not Shown)		Appelez-nous	-
NI	WPW10476822		Cord, Power (10a Cord Adapter) (european) (parts Not Shown)   (Replaces: W10476822)				$ 77.05
NI	WPW10476820		Cord, Power (10a Cord Adapter) (british) (parts Not Shown)   (Replaces: W10476820)				$ 26.70
NI	WPW10475423		Cord, Power (10a Cord Adapter) (type B) (parts Not Shown)   (Replaces: W10475423)				$ 20.71

    View Diagram in Separate Window       Print Part List
