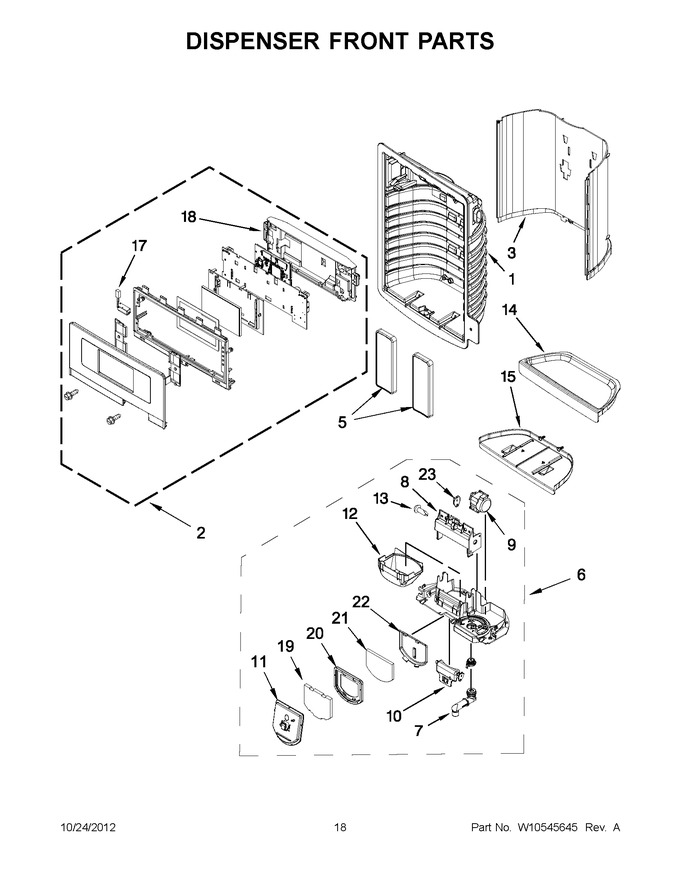

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10521640		U I Assemly   (Replaces: W10458217)				$ 395.08
3	W11045975		False Wall Disp. (white)   (Replaces: W10215699)		Appelez-nous	-
3	W11045976		False Wall Disp. (black)   (Replaces: W10233560)				$ 43.18
3	W11045978		False Wall Disp. (grey)   (Replaces: W10299897)				$ 90.33
5	W11661207		Pad, Ice & Water (black)   (Replaces: W10353847)				$ 66.19
5	WPW10353848		Pad, Ice & Water (grey)   (Replaces: W10353848)				$ 321.56
5	W10353846		Pad, Ice & Water (white)				$ 280.01
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	W10339582		Ice Door, Clip Side		Appelez-nous	-
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
14	W11192301		Tray-dispenser (grey)   (Replaces: W10299895)				$ 65.82
14	W11045970		Tray-dispenser (white)   (Replaces: W10267869)				$ 65.93
14	W11045971		Tray-dispenser (black)   (Replaces: W10267870)				$ 65.90
15	W10267860		Slide-tray Disp. (white)		Appelez-nous	-
15	W10267861		Slide-tray Disp. (black)				$ 74.39
15	WPW10267863		Slide-tray Disp. (grey)   (Replaces: W10267863)				$ 73.22
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
18	W10254277		Cover, Board		Appelez-nous	-
19	WPW10331456		Insulation   (Replaces: W10331456)				$ 25.75
20	WPW10317282		Seal   (Replaces: W10317282)				$ 27.18
21	WPW10331454		Insulation   (Replaces: W10331454)				$ 25.75
22	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
23	W10174818		Clip, Motor Coupling		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
