Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10065852 Tips, Safer Cooking (french) Appelez-nous -
1 W10526071 Instructions, Installation Appelez-nous -
1 W10430935 Owners Manual Appelez-nous -
1 W10311752 Tech Sheet Appelez-nous -
1 9762761 Tips, Safer Cooking (english) Appelez-nous -
2 W10338216 Set, Grates (black) Special Order $ 152.18

2 W10338217 Set, Grates (wetstone) Special Order $ 151.20

3 WPW10299233 Set, Burner Cap (black)   (Replaces: W10299233) Special Order $ 210.99

3 W10299239 Set, Burner Cap (wetstone) Appelez-nous -
4 WPW10406243 Burner Head, Auxiliary (6k) (right Rear, Left Rear)   (Replaces: 8286181) In-Stock Immediately $ 39.08

4 WPW10406797 Burner Head, Rapid (12k) (right Front)   (Replaces: 8286182) Special Order $ 92.91

4 WPW10406878 Burner Head, Ultra Rapid (17k) (left Front)   (Replaces: 8286183) Special Order $ 107.48

4 WPW10336094 Burner Head (center)   (Replaces: W10336094) Special Order $ 227.81

5 W10336331 Cooktop (white)   (Replaces: W10260170) Special Order $ 418.08

5 W10336330 Cooktop (black)   (Replaces: W10260169) Special Order $ 420.07

6 W10294792 Knob (stainless) Special Order $ 19.13

6 WPW10281279 Knob (white)   (Replaces: W10281279) In-Stock Immediately $ 21.34

6 WPW10296917 Knob (black)   (Replaces: W10296917) Special Order $ 20.88

7 W10219244 Panel, Manifold (white) Appelez-nous -
7 W10219243 Panel, Manifold (black) Appelez-nous -
7 W10219242 Panel, Manifold (stainless) Special Order $ 127.68

8 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 18.60

9 W10518258 Bracket, Cooktop Support   (Replaces: W10364218) Appelez-nous -
10 4396096RB Griddle   (Replaces: W10297135) Special Order $ 349.44

11 W10171137 Fish Burner, Cap (wetstone) Special Order $ 116.61

11 WPW10171140 Fish Burner, Cap (black)   (Replaces: W10171140) Special Order $ 168.47

12 WPW10333445 Base, Burner (fish Burner Only)   (Replaces: W10333445) Special Order $ 110.05

13 W11189172 Glide, Main Top   (Replaces: 8016P022-60) In-Stock Immediately $ 17.61


    View Diagram in Separate Window     Print Icon   Print Part List

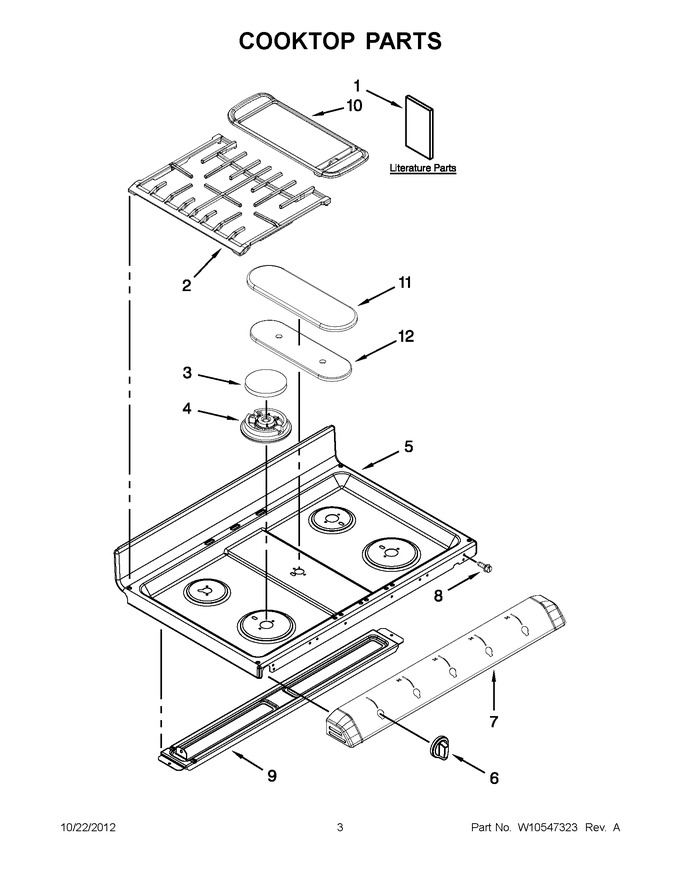

Diagram for MGT8885XB03
