SELECT A DIAGRAM

01 - Control Panel Parts

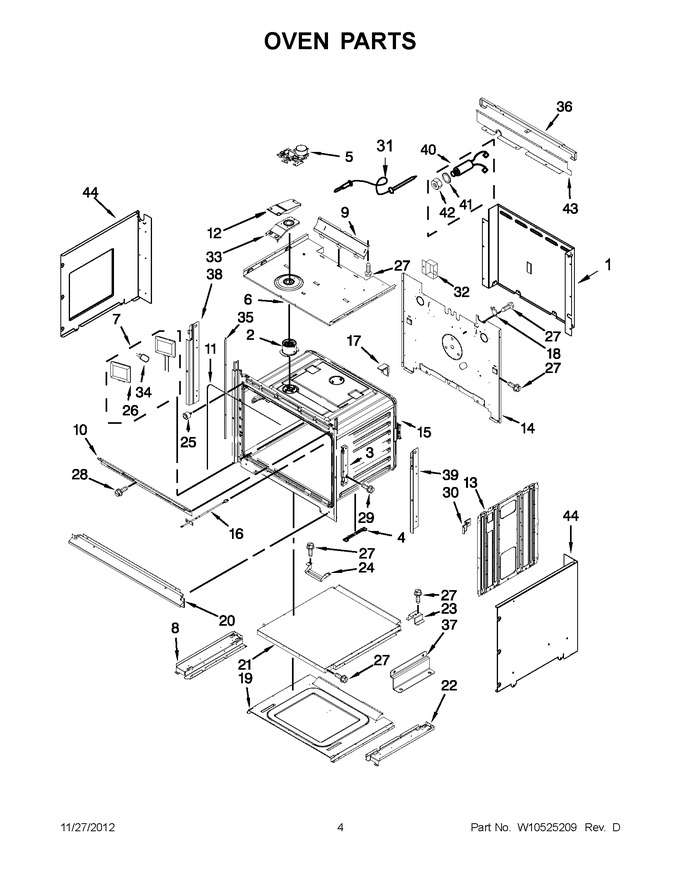

02 - Oven Parts


03 - Oven Door


04 - Internal Oven Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Door, Microwave


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10519707		Cover, Back Duct				$ 74.08
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 25.54
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 57.49
4	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 26.76
5	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 306.46
6	W10282980		Top, Chassis				$ 123.95
7	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 96.33
8	W10283020		Support, Base Left Hand		Appelez-nous	-
9	W10351258		Bracket, Blower Deflector		Appelez-nous	-
10	W10495154		Vent, Center 30``   (Replaces: W10505357)				$ 198.52
11	W11623080		Gasket   (Replaces: W10282960)			Immediately	$ 72.35
12	W10616810		Exhaust, Vent Cover   (Replaces: W10282985)				$ 69.95
13	W10318190		Side, Chassis				$ 117.20
14	W10282990		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP74008369		Probe, Sensor   (Replaces: 7430P043-60)			Immediately	$ 148.25
17	WPW10323551		Bumper, Rail   (Replaces: W10323551)				$ 8.41
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 134.52
19	W11238787		Base, Chassis   (Replaces: W10282900)				$ 349.65
20	WPW10327374		Assembly, Bottom Vent (stainless)   (Replaces: W10327374)				$ 346.78
20	WPW10351275		Assembly, Bottom Vent (black)   (Replaces: W10351275)				$ 664.51
20	WPW10506348		Assembly, Bottom Vent (white)   (Replaces: W10506348)				$ 179.29
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 220.05
22	W10283021		Support, Base Right Hand		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Chassis, Bottom Duct Spacer				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
29	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
30	W10347649		Spacers, Front				$ 15.02
31	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 99.73
32	W11819303		Connector, Cover   (Replaces: 8285593)		Appelez-nous	-
33	W10616809		Base, Exhaust Vent   (Replaces: W10282984)				$ 32.24
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 114.50
35	W10536162		Trim, Side (black (left))   (Replaces: W10504414)				$ 38.73
35	W10536162		Trim, Side (black (right))   (Replaces: W10504413)				$ 38.73
36	W10283022		Support, Crossbar				$ 81.32
37	W10283024		Side, Bracket				$ 78.86
38	W10360517		Rail, Side (left Hand)				$ 84.28
39	W11461034		Rail, Side (right Hand)   (Replaces: W10360519)				$ 61.32
40	8186589		Jack, Meat Probe			Immediately	$ 159.30
41	WP9755547		Washer, Lock   (Replaces: 9755547)				$ 6.41
42	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 7.30
43	W10507010		Deflector		Appelez-nous	-
44	W11684789		Side, Combo (insulation, Cavity)   (Replaces: W10282944)				$ 124.04
44	W10283029		Side, Combo (right Hand)				$ 85.38
44	W10283028		Side, Combo (left Hand)				$ 83.55
44	W11688731		Side, Combo (insulation, Wrap)   (Replaces: W10520715)				$ 124.87

    View Diagram in Separate Window       Print Part List
