SELECT A DIAGRAM

01 - Cover Sheet

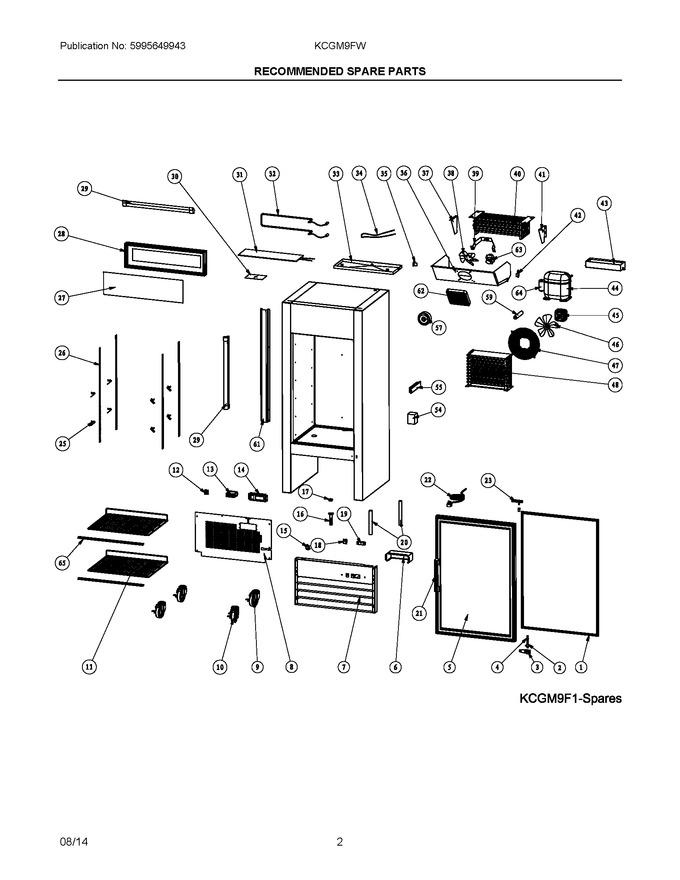

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304493266		Gasket, Door Seal		Appelez-nous	-
2	5304493267		Hinge Pin		Appelez-nous	-
3	5304493118		Hinge, Door, Bottom Right		Appelez-nous	-
4	5304493120		Bushing, Hinge Pin		Appelez-nous	-
5	5304493268		Door, Glass		Appelez-nous	-
6	5304493269		Shield, Water, Controller		Appelez-nous	-
7	5304493270		Grille, White, Front, Louvers		Appelez-nous	-
8	5304493272		Panel, Svce Access, Black, Rear		Appelez-nous	-
9	5304493274		Caster, 4 Inch Diameter		Appelez-nous	-
10	5304493275		Caster, 4 Inch Diameter, Locking		Appelez-nous	-
11	5304493276		Shelf		Appelez-nous	-
12	5304492248		Switch, Power				$ 59.61
13	5304497840		Controller, Temp, (juchuang)		Appelez-nous	-
14	5304493277		Housing, Controller, White		Appelez-nous	-
15	5304492259		Switch, Lamp, Door Activated		Appelez-nous	-
16	5304493078		Spout, Drain Tube		Appelez-nous	-
17	5304493080		Cover, Drain		Appelez-nous	-
18	5304493279		Switch, Lamp, Green		Appelez-nous	-
19	5304493083		Display, Temperature, Fahrenheit		Appelez-nous	-
20	5304492265		Tube, Drain, Outer		Appelez-nous	-
21	5304493280		Handle, Door		Appelez-nous	-
22	5304492267		Power Cord, Electric, 115 V		Appelez-nous	-
23	5304493281		Hinge, Door, Upper Right		Appelez-nous	-
25	5304493090		Clip, Shelf Mount		Appelez-nous	-
26	5304493282		Pilaster, Shelf Mount, 5 Screw		Appelez-nous	-
27	5304493283		Panel, Front Display, Lamp Lens		Appelez-nous	-
28	5304493284		Frame, Lamp Housing		Appelez-nous	-
29	5304493285		Lamp, Led		Appelez-nous	-
30	5304493286		Plate, Wiring Cover		Appelez-nous	-
31	5304493287		Heater, Drain Pan		Appelez-nous	-
32	5304493288		Heater, Evaporator, Defrost		Appelez-nous	-
33	5304493289		Pan, Defrost Drain, Evaporator		Appelez-nous	-
34	5304492344		Heater, Drain Hose		Appelez-nous	-
35	5304493290		Bracket, Evap Fan Cover, Left		Appelez-nous	-
36	5304493291		Cover, Fan Assembly, Evaporator		Appelez-nous	-
37	5304493292		Bracket, Evap Mounting, Left		Appelez-nous	-
38	5304493160		Fan Blade, Evaporator Fan		Appelez-nous	-
39	5304493161		Bracket, Motor Mount, Evap Fan		Appelez-nous	-
40	5304493293		Evaporator		Appelez-nous	-
41	5304493294		Bracket, Evap Mounting, Right		Appelez-nous	-
42	5304493295		Bracket, Evap Fan Cover, Right		Appelez-nous	-
43	5304493296		Pan, Drain, Condensate		Appelez-nous	-
44	5304493297		Compressor, W/terminal Box		Appelez-nous	-
45	5304492359		Motor, Condenser Fan		Appelez-nous	-
46	5304493298		Fan Blade, Condenser Fan		Appelez-nous	-
47	5304493299		Cover, Condenser Fan		Appelez-nous	-
48	5304493300		Condenser		Appelez-nous	-
54	5304493077		Transformer, Temp Display				$ 84.74
55	5304493305		Ballast, Lamp		Appelez-nous	-
57	5304493307		Transformer, Door Heater		Appelez-nous	-
59	5304492275		Filter-drier				$ 84.74
61	5304493308		Channel, Center, Cabinet Back		Appelez-nous	-
62	5304493115		Cover, Evaporator Fan, Mesh				$ 54.92
63	5304493162		Motor, Evaporator Fan				$ 228.69
64	5304493311		Relay/starter		Appelez-nous	-
65	5304493309		Tag Strip, Price Label, Plastic		Appelez-nous	-
13A	5304492245		Controller, Temp, (carel)				$ 237.66
64A	5304493312		Overload		Appelez-nous	-
64B	5304493313		Capacitor, Start				$ 103.90

    View Diagram in Separate Window       Print Part List
