SELECT A DIAGRAM
01 - Cover Sheet

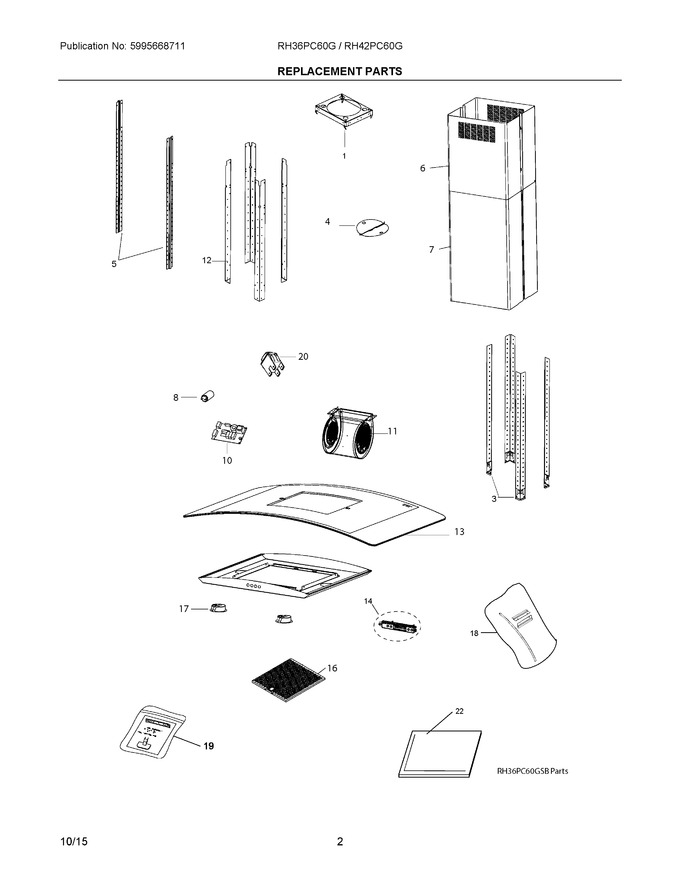

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304472729 | Support, Ceiling Hanger |
|
$ 180.26 | |||||
| 3 | 5304472728 | Support, Vertical, Upper, Angle |
|
$ 94.17 | |||||
| 4 | 5304466258 | Damper, Exhaust |
|
$ 115.45 | |||||
| 5 | 5304464289 | Support, Duct Cover, Vertical |
|
$ 83.54 | |||||
| 6 | 5304466679 | Cover, Duct, Upper, (2 Required) |
|
$ 421.35 | |||||
| 7 | 5304472691 | Cover, Duct, Lower, (2 Required) |
|
$ 319.31 | |||||
| 8 | 5304464261 | Capacitor |
|
$ 185.12 | |||||
| 10 | 5304464263 | Pc Board, Power/main, W/spacers |
|
Immediately | $ 230.18 | ||||
| 11 | 5304466260 | Blower Assembly |
|
$ 1,179.10 | |||||
| 12 | 5304472731 | Support, Vertical, Lower, Angle |
|
$ 124.49 | |||||
| 13 | 5304466261 | Canopy, 42 Inch, Glass |
|
- | |||||
| 14 | 5304464201 | Control Panel, Display, Lcd |
|
$ 348.35 | |||||
| 16 | 5304464265 | Filter, Grease |
|
$ 108.76 | |||||
| 17 | 5304488411 | Lamp Assy, Halogen, 40w, 120v, G9 |
|
$ 176.15 | |||||
| 18 | 5304480606 | Seal Kit, Glass, W/mtg Brackets |
|
$ 162.20 | |||||
| 19 | 5304489882 | Installation Kit, W/hardware, Manual, Template |
|
$ 210.26 | |||||
| 20 | 5304472119 | Switch, On/off |
|
$ 98.81 | |||||
| 22 | 5304466255 | Filter, Charcoal, Recirculation |
|
$ 265.52 | |||||
| NI | 5304466745 | Recirculation Kit, Island, W/filter |
|
- |
