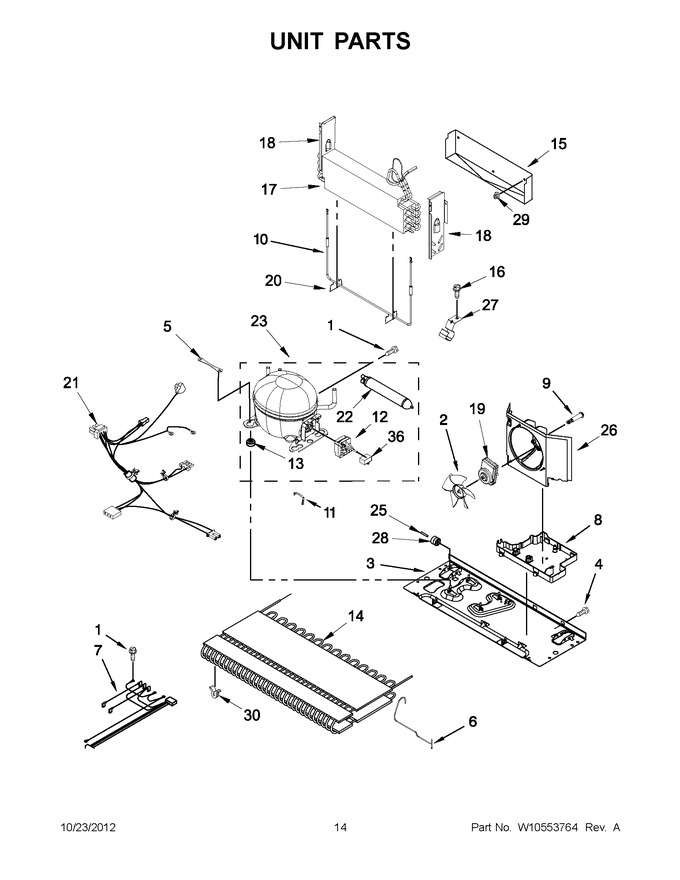

07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 80.15
3	W10480107		Basepan				$ 132.75
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
5	W10236396		Strap, Compressor			Immediately	$ 18.73
6	W10294014		Tube, Discharge				$ 82.53
7	W11260592		Harness, Evaporator (includes Heater)   (Replaces: W10292244)			Immediately	$ 72.46
8	WPW10655367		Pan, Drain   (Replaces: W10296784)			Immediately	$ 93.01
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 11.95
10	WP12729127		Heater, Evaporator   (Replaces: 12729127)			Immediately	$ 104.71
11	W11661170		Strap, Bale   (Replaces: W10174384)			Immediately	$ 10.68
12	WPW10194431		Start Protect, Combo (start Device, Combination (start Relay And Overload) For Service Compressor Only)   (Replaces: W10194431)			Immediately	$ 94.84
13	WPW10169124		Grommet-compressor   (Replaces: 10835903SP)				$ 6.80
14	W10346423		Condenser				$ 215.37
15	W11337775		Tray, Drip   (Replaces: W10292801)			Immediately	$ 89.16
16	WP33001882		Screw   (Replaces: 12990701)				$ 75.34
17	W10920993		Evaporator   (Replaces: W10317012)			Immediately	$ 343.66
18	12225702		Dam (right Hand)				$ 14.09
18	12225602		Dam (left Hand)				$ 14.66
19	W11613295		Motor, Fan   (Replaces: W10239053)			Immediately	$ 129.31
20	W11673433		Clip, Heater   (Replaces: 10428101)				$ 133.36
21	WPW10234024		Harness, Unit (includes Power Cord)   (Replaces: W10234024)				$ 277.52
22	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
23	W10233960		Compressor   (Replaces: W10164016)			Immediately	$ 485.41
24	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 89.54
25	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.11
26	W11556315		Shroud   (Replaces: W10189184)				$ 75.28
27	W10281329		Clip, Drier				$ 12.36
28	12477102		Roller			Immediately	$ 6.64
29	10623002		Clip, Evaporator				$ 10.90
30	WPW10137529		Grommet, Condenser   (Replaces: W10137529)				$ 7.88
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access (œ``)		Appelez-nous	-
NI	978029		Valve, Access (œ``)				$ 93.85
NI	978030		Valve, Access (Ÿ``)				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge		Appelez-nous	-
