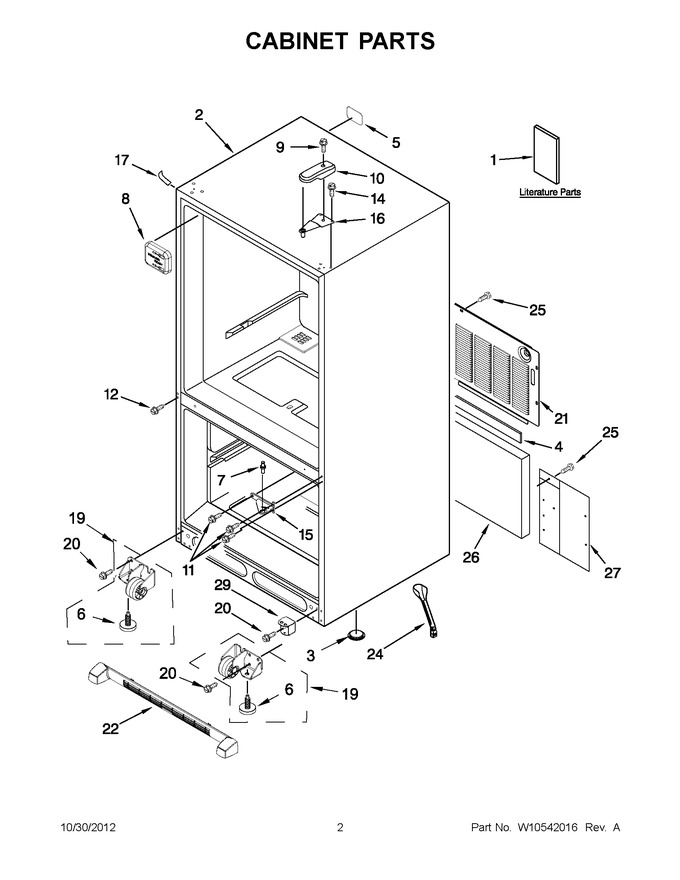

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door


04 - Refrigerator Liner Parts


05 - Refrigerator Door


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10517966		Tech Sheet		Appelez-nous	-
1	W10325961		Energy Guide		Appelez-nous	-
1	W10366206SP		Use & Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	A3076901		Plug, Button				$ 5.70
4	B5759655		Gasket				$ 11.73
5	W11685757		Label-fill Tube   (Replaces: 12249902)				$ 6.67
6	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
7	WP67006744		Pin, Center Hinge   (Replaces: 10351005)				$ 7.81
8	WP67001098		Cover-fill Tube   (Replaces: 12477501)				$ 7.59
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
10	67001014		Cover, Top Hinge (white)   (Replaces: 12477601W)				$ 20.11
11	W11573362		Screw   (Replaces: W10339086)				$ 13.25
12	WP98165		Screw   (Replaces: 12990521)				$ 7.71
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.59
15	W11689473		Hinge, Center (white)   (Replaces: 12607103WD)				$ 62.81
16	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 42.42
17	12587703W		Cover, Corner (white)				$ 20.61
19	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 33.62
19	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 33.62
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.34
21	W10210978		Cover, Unit				$ 181.60
22	WPW10534166		Grille, Toe (white)   (Replaces: W10236649)			Immediately	$ 89.63
24	W10619951		Tube-drain   (Replaces: W10344401)			Immediately	$ 41.61
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
26	12820505		Insulation				$ 71.70
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 19.22
29	W10490811		Hinge, Bottom (white)			Immediately	$ 21.19
