SELECT A DIAGRAM

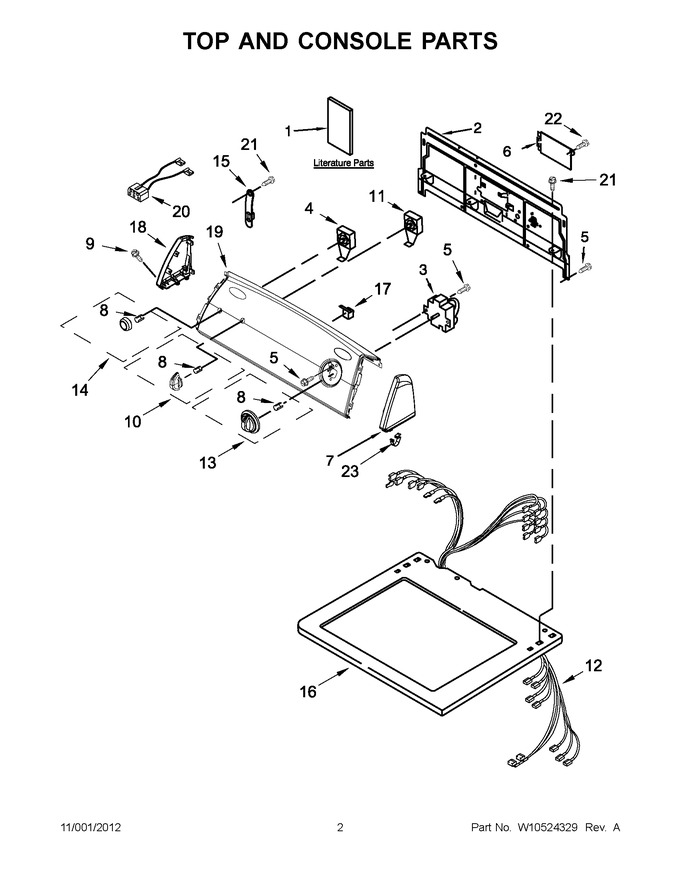

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10462986		Use And Care Guide		Appelez-nous	-
1	W10475437		Wiring Diagram		Appelez-nous	-
1	W10454272		Installation Instructions		Appelez-nous	-
2	285909		Panel, Rear Console   (Replaces: 8317305)				$ 235.28
3	W10463293		Timer Assembly (60 Hz.)		Appelez-nous	-
4	W10238464		Switch, Push-to-start		Appelez-nous	-
5	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
6	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
7	WP8565954		End Cap (r.h.) (white)   (Replaces: 8565954)				$ 59.26
8	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
10	W10034380		Knob, Control (white/metallic)				$ 25.06
11	W11235848		Switch, Rotary   (Replaces: W10168168)		Appelez-nous	-
12	W10450297		Wiring Harness, Main		Appelez-nous	-
13	W10034750		Knob, Timer (white/metallic)				$ 28.27
14	WPW10034790		Knob, Push-to-start (white)   (Replaces: W10034790)				$ 52.03
15	WP8568314		Strap, Console   (Replaces: 8568314)				$ 7.35
16	8559781		Top (white)		Appelez-nous	-
17	8522378		Buzzer, Mini		Appelez-nous	-
18	WP8565957		End Cap (l.h.) (white)   (Replaces: 8565957)				$ 58.28
19	WPW10492149		Panel & Bracket Assembly   (Replaces: W10492149)				$ 236.57
20	8283287		Wire, Jumper (temperature)		Appelez-nous	-
21	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
22	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
23	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93

    View Diagram in Separate Window       Print Part List
