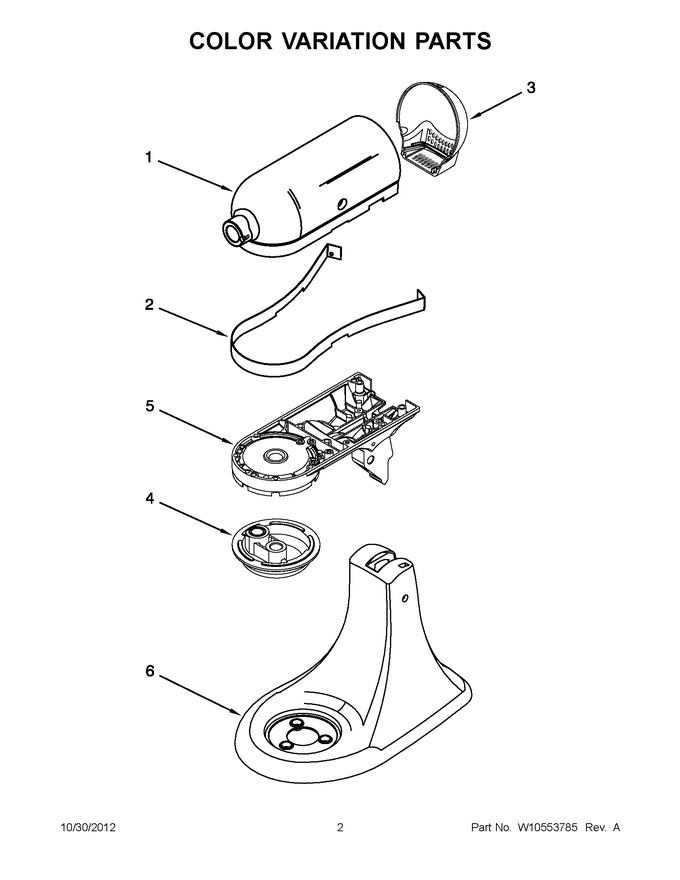

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Motor And Control Unit Parts
04 - Base And Pedestal Unit
05 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10350463 | Motor Housing (contour Silver) |
|
- | |||||
| 1 | W10383627 | Motor Housing (espresso) |
|
- | |||||
| 2 | W11171098 | Trim Band (black/silver) (Replaces: W10474761) |
|
- | |||||
| 3 | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 3 | W10383633 | End Cover (espresso) |
|
- | |||||
| 4 | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4 | W10383631 | Planetary (espresso) |
|
- | |||||
| 5 | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 5 | W10383623 | Lower Gearcase (espresso) |
|
- | |||||
| 6 | W10482478 | Pedestal With Feet And Headlock (contour Silver) |
|
- | |||||
| 6 | W10383620 | Pedestal With Feet And Headlock (espresso) |
|
- |
