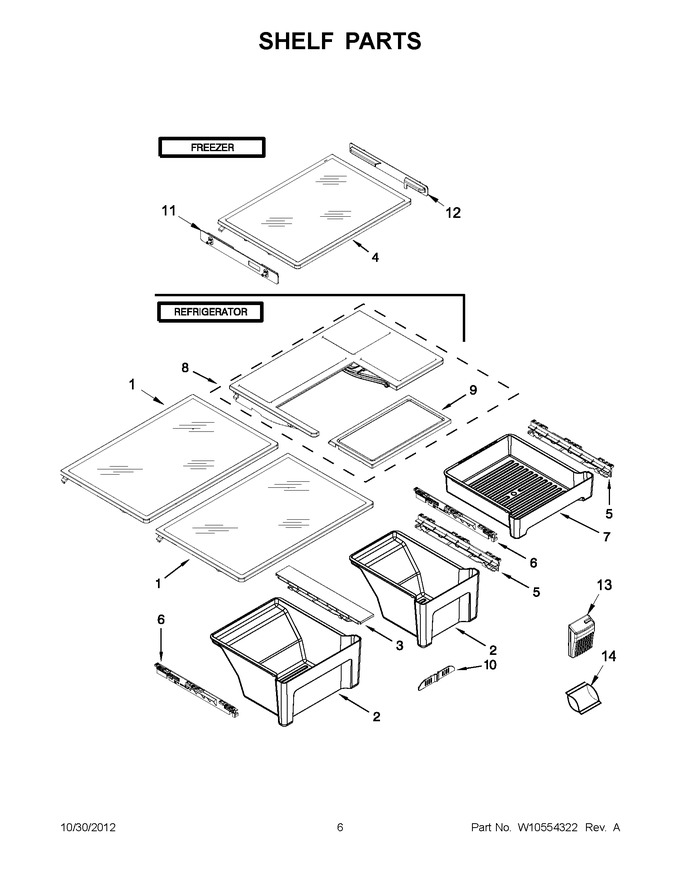

03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10486290 | Shelf Assembly, Full (30-inch) (Replaces: W10486290) |
|
$ 236.95 | |||||
| 2 | W10373941 | Crisper Pan (8-inch) |
|
$ 64.07 | |||||
| 2 | W10373931 | Crisper Pan (16-inch) |
|
- | |||||
| 3 | WPW10468557 | Track Rail, Center (Replaces: W10404446) |
|
Immediately | $ 27.68 | ||||
| 4 | W10486292 | Shelf Assembly, Freezer |
|
- | |||||
| 5 | WPW10468556 | Track Rail, Right Hand (Replaces: W10468556) |
|
Immediately | $ 6.80 | ||||
| 6 | WPW10468555 | Track Rail, Left Hand (Replaces: W10468555) |
|
Immediately | $ 22.59 | ||||
| 7 | WPW10308848 | Meat Pan (Replaces: W10308848) |
|
$ 146.13 | |||||
| 8 | WPW10502933 | Shelf Assembly, 2/3 Flip (Replaces: W10502933) |
|
$ 273.10 | |||||
| 9 | WPW10313893 | Shelf, 2/3 Flip (Replaces: W10313893) |
|
$ 171.27 | |||||
| 10 | W11590562 | Humidity Control (Replaces: W10356844) |
|
$ 21.11 | |||||
| 11 | W11395919 | Support, Freezer Shelf, Left Side (Replaces: W10345367) |
|
$ 27.06 | |||||
| 12 | W11395921 | Support, Freezer Shelf, Right Side (Replaces: W10345368) |
|
$ 27.06 | |||||
| 13 | W11605789 | Holder, Produce Filter (Replaces: W10408748) |
|
Immediately | $ 15.89 | ||||
| 14 | W10346771 | Filter, Produce Preserver |
|
- |
