01 - Cabinet Parts

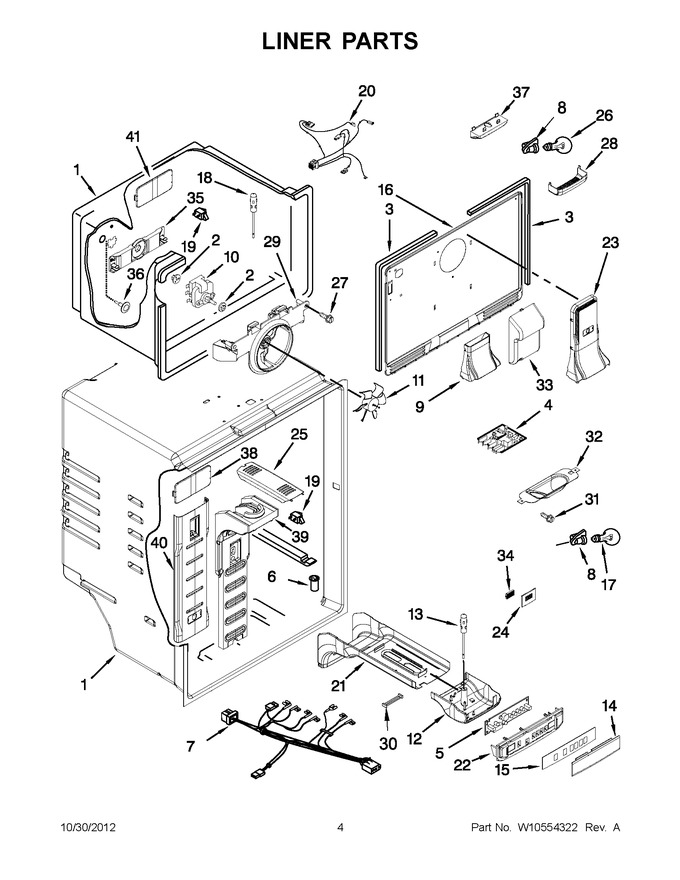

02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254359) |
|
$ 28.12 | |||||
| 4 | WPW10392184 | Control, Electronic (Replaces: W10392184) |
|
$ 302.49 | |||||
| 5 | WPW10336519 | Control, User Interface (Replaces: W10336519) |
|
$ 354.61 | |||||
| 6 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 99.15 | |||||
| 7 | W10440982 | Wire Assembly, Control Box |
|
- | |||||
| 8 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 9 | W10396926 | Assembly, Tower Connection |
|
$ 39.05 | |||||
| 10 | WPW10173141 | Fan Motor (Replaces: W10173141) |
|
$ 318.76 | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W10459450 | Control Box |
|
- | |||||
| 13 | WPW10384183 | Thermistor, Rc (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 14 | W10339195 | Fascia Lens |
|
$ 21.53 | |||||
| 15 | W10394708 | Overlay |
|
$ 260.18 | |||||
| 16 | W10385128 | Cover, Evaporator |
|
$ 82.68 | |||||
| 17 | W11618980 | Light Bulb (Replaces: W10173035) |
|
$ 22.42 | |||||
| 18 | WPW10383615 | Thermistor, Fc (Replaces: W10383615) |
|
Immediately | $ 47.51 | ||||
| 19 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | W10403169 | Wire Assembly, Evaporator Fan |
|
- | |||||
| 21 | WPW10305175 | Air Diffuser Cover (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10383445 | Fascia Control |
|
$ 33.79 | |||||
| 23 | W10305174 | Air Tower, Fc |
|
$ 43.06 | |||||
| 24 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 37.56 | |||||
| 25 | W10309097 | Light Cover, Rc |
|
$ 49.40 | |||||
| 26 | W10855002 | Light Bulb (Replaces: W10451451) |
|
- | |||||
| 27 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 28 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | W10309630 | Wire, Jumper |
|
$ 73.40 | |||||
| 31 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 32 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 33 | WPW10339203 | Water Tube Cover (Replaces: W10339203) |
|
$ 7.55 | |||||
| 34 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 35 | 2254454 | Bracket Evaporator Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 36 | WP941839 | Hole Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 37 | WPW10313917 | Housing, Lighting Fc (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 38 | W10336009 | Screw Cup |
|
$ 77.40 | |||||
| 39 | WPW10395376 | Multiflow Assembly (Replaces: W10395376) |
|
$ 88.78 | |||||
| 40 | WPW10356895 | Air Tower, Rc (Replaces: W10356895) |
|
$ 161.49 | |||||
| 41 | W10404405 | Screw Cup, Fc |
|
- |
