Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10311749 Tech Sheet Appelez-nous -
1 W10526071 Instructions, Installation Appelez-nous -
1 W10432286 Owners Manual Appelez-nous -
1 9762761 Tips, Safer Cooking (english) Appelez-nous -
2 W10299239 Set, Burner Cap (wetstone) Appelez-nous -
2 WPW10299233 Set, Burner Cap (black)   (Replaces: W10299233) Special Order $ 210.99

3 W10336331 Cooktop (white)   (Replaces: W10260170) Special Order $ 418.08

3 W10336330 Cooktop (black)   (Replaces: W10260169) Special Order $ 420.07

4 WPW10336094 Burner Head (center)   (Replaces: W10336094) Special Order $ 227.81

4 WPW10406243 Burner Head, Auxiliary (6k) Right Rear, Left Rear   (Replaces: W10406243) In-Stock Immediately $ 39.08

4 WPW10406878 Burner Head, Ultra Rapid (17.5k) (left Front)   (Replaces: W10406878) Special Order $ 107.48

4 WPW10406797 Burner Head, Rapid (12k) (right Front)   (Replaces: W10406797) Special Order $ 92.91

5 W10177201 Knob, Control (black)   (Replaces: 7733P532-60) Special Order $ 21.03

5 WPW10415451 Knob, Control (stainless)   (Replaces: W10415451) Special Order $ 21.38

5 W10177198 Knob, Control (white)   (Replaces: 7733P533-60) Special Order $ 84.89

6 W10518258 Bracket, Cooktop Support   (Replaces: W10364218) Appelez-nous -
7 W10177197 Knob, Control (white)   (Replaces: 7733P527-60) Special Order $ 20.29

7 WPW10415450 Knob, Control (stainless)   (Replaces: W10415450) In-Stock Immediately $ 21.53

7 WP7733P526-60 Knob, Control (black)   (Replaces: 7733P526-60) In-Stock Immediately $ 25.16

8 WPW10338214 Set, Grate (black)   (Replaces: W10338214) Special Order $ 345.92

8 W10338215 Set, Grate (wetstone) Appelez-nous -
9 W10219252 Panel, Manifold (stainless) Appelez-nous -
9 W10219251 Panel, Manifold (white) Appelez-nous -
9 W10219250 Panel, Manifold (black) Appelez-nous -
10 WPW10333445 Base, Burner (fish Burner Only)   (Replaces: W10333445) Special Order $ 110.05

11 WPW10171140 Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140) Special Order $ 168.47

11 W10171137 Kit, Burner Cap (fish Burner Only) (wetstone) Special Order $ 116.61

12 W11189172 Glide, Main Top   (Replaces: 8016P022-60) In-Stock Immediately $ 17.61


    View Diagram in Separate Window     Print Icon   Print Part List

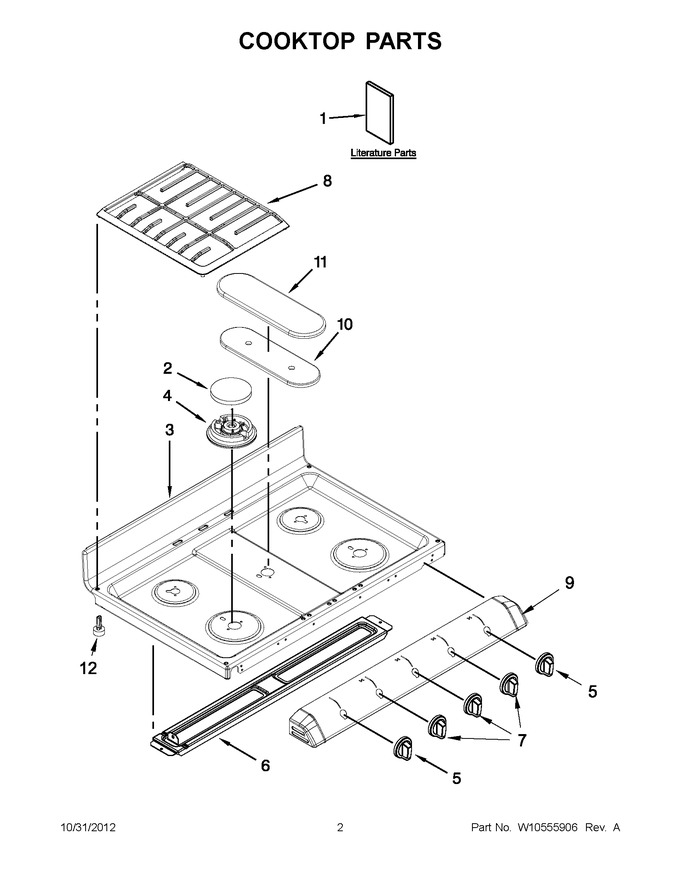

Diagram for GGG390LXQ04
