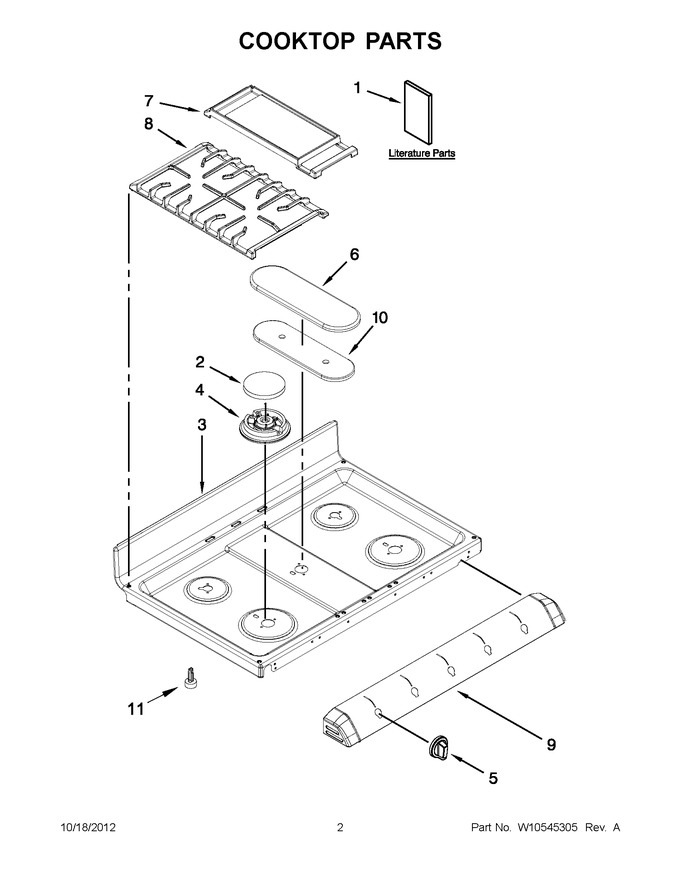

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Internal Oven Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10323649		Sheet, Tech		Appelez-nous	-
1	W10430933		Manual, Owners		Appelez-nous	-
1	W10526086		Instructions, Installation		Appelez-nous	-
1	W10065852		Tips, Safer Cooking (french)		Appelez-nous	-
1	W10505256		Sheet, Oven Performance		Appelez-nous	-
1	9762761		Tips, Safer Cooking (english)		Appelez-nous	-
2	WPW10299236		Kit, Burner Cap   (Replaces: W10299236)			Immediately	$ 202.94
3	W10401393		Cooktop (stainless)   (Replaces: W10330921)				$ 393.71
4	WPW10406878		Burner Head, Ultra Rapid (17.5k) (left Front)   (Replaces: W10406878)				$ 96.73
4	WPW10406797		Burner Head, Rapid (12k) (right Front)   (Replaces: W10406797)				$ 83.62
4	WPW10336094		Burner Head (center)   (Replaces: W10336094)				$ 205.03
4	WPW10406243		Burner Head, Auxiliary (6k) (left Rear & Right Rear)   (Replaces: W10406243)			Immediately	$ 35.17
5	WPW10295131		Knob, Control (stainless)   (Replaces: W10295131)			Immediately	$ 20.84
6	WPW10171140		Kit, Burner Cap (fish Burner Only) (black)   (Replaces: W10171140)				$ 151.62
7	W10311218		Griddle				$ 87.90
8	WPW10260069		Kit, Grate   (Replaces: W10260069)				$ 305.92
9	W10284717		Panel, Manifold (stainless)				$ 127.17
10	WPW10333445		Base, Burner (fish Burner Only)   (Replaces: W10333445)				$ 99.05
11	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.85
