01 - Cooktop Parts

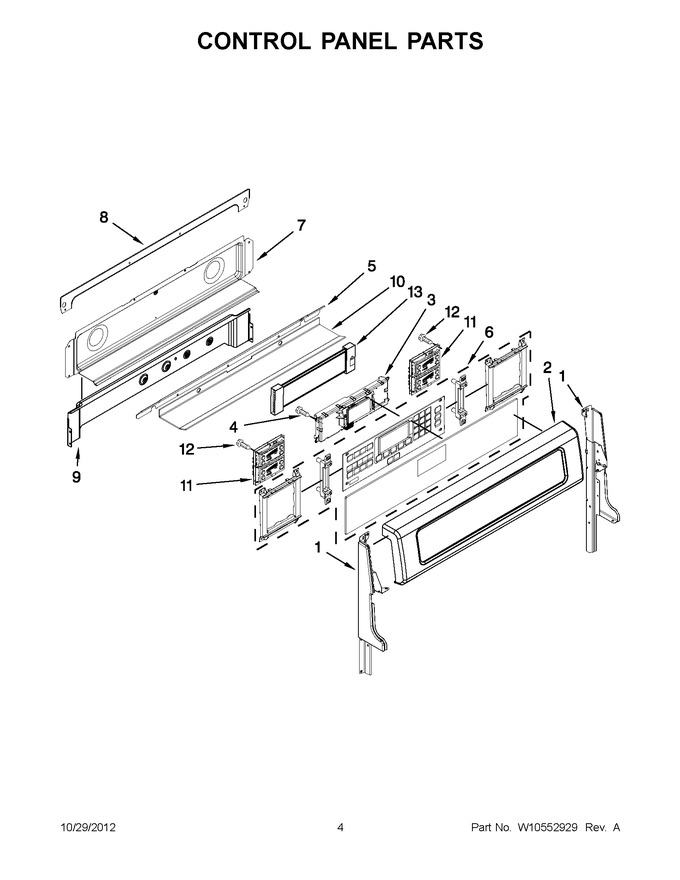

02 - Control Panel Parts
03 - Chassis Parts
04 - Internal Oven Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319111 | Support, Backguard (black, Right) |
|
$ 43.80 | |||||
| 1 | W10319109 | Support, Backguard (black, Left) |
|
$ 92.84 | |||||
| 2 | WPW10424185 | Console (stainless) (Replaces: W10424185) |
|
$ 380.92 | |||||
| 3 | W10365396 | Electric, Control Mrc2 |
|
$ 401.35 | |||||
| 4 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 5 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 96.60 | |||||
| 6 | W10295110 | Assembly, Ui Glass (black) |
|
$ 237.64 | |||||
| 7 | W10296773 | Cover, Backguard |
|
$ 194.52 | |||||
| 8 | WPW10292689 | Cover, Wire Filler (Replaces: W10292689) |
|
$ 95.35 | |||||
| 9 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 10 | W10334229 | Shield, Backguard |
|
- | |||||
| 11 | W10287257 | Interface, User Right |
|
$ 341.59 | |||||
| 11 | WPW10277011 | Interface, User Left (Replaces: W10277011) |
|
$ 337.86 | |||||
| 12 | WP3400702 | Screw (Replaces: 3400702) |
|
$ 13.09 | |||||
| 13 | WPW10318787 | Connector, Flex (Replaces: W10318787) |
|
$ 119.94 |
