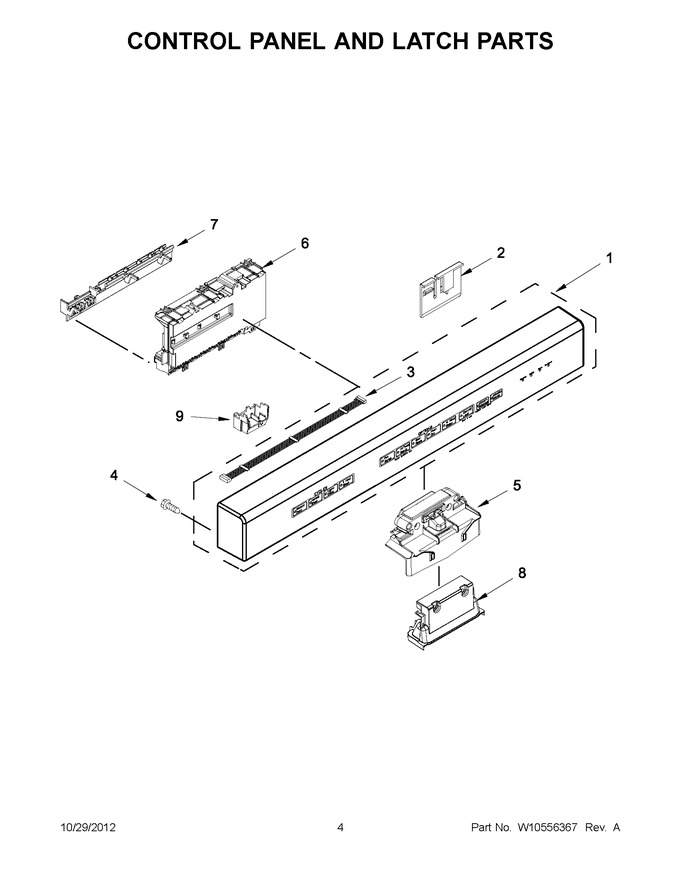

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10500107 | Console Assembly (black) |
|
- | |||||
| 1 | WPW10500180 | Console Assembly (white) (Replaces: W10500106) |
|
$ 338.72 | |||||
| 1 | W10500105 | Console Assembly (stainless) |
|
- | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 20.94 | |||||
| 3 | W10315814 | Jumper, 4-wire |
|
$ 21.31 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 6.80 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10380262) |
|
Immediately | $ 35.18 | ||||
| 6 | W10866118 | Control, Electronic (Replaces: W10403604) |
|
Immediately | $ 316.75 | ||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 19.49 | |||||
| 8 | WPW10195718 | Handle (black) (Replaces: W10195718) |
|
$ 119.84 | |||||
| 8 | W10195833 | Handle (white) |
|
$ 50.72 | |||||
| 8 | W10195835 | Handle (stainless) |
|
$ 52.05 | |||||
| 9 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 7.70 |
