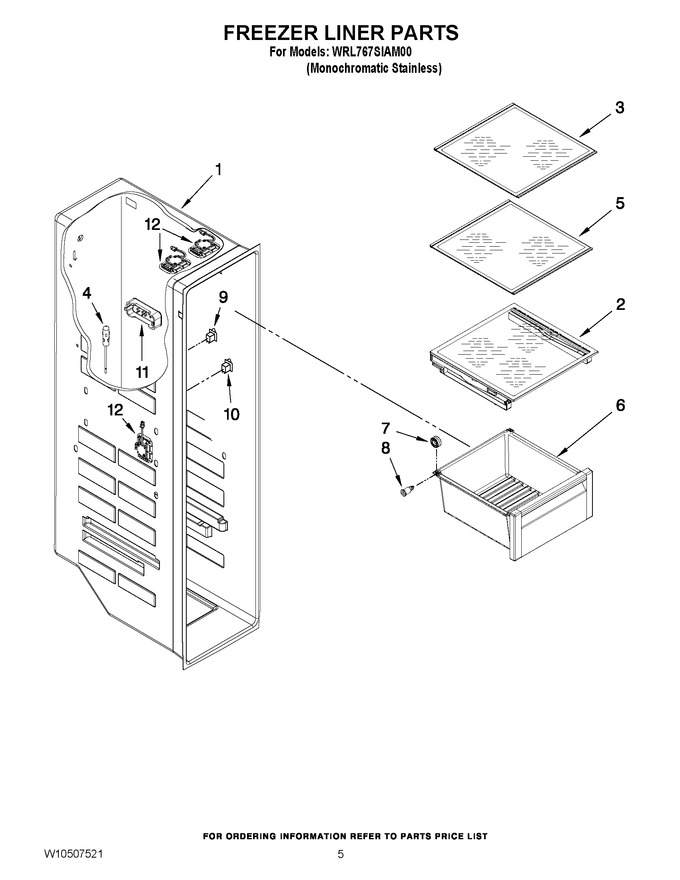

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WPW10269181 | Cover Assy (Replaces: W10269181) |
|
$ 240.27 | |||||
| 3 | WPW10269184 | Shelf, Glass Upper (Replaces: W10269184) |
|
$ 240.49 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 30.24 | ||||
| 5 | W11094295 | Shelf, Glass Lower (Replaces: W10278132) |
|
$ 204.61 | |||||
| 6 | WPW10260985 | Pan, Freezer Upper Also Order 7 & 8 (Replaces: W10260985) |
|
$ 141.20 | |||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 14.17 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 32.89 | |||||
| 9 | W11457217 | Switch, Rocker Arm Light (Replaces: 1115373) |
|
$ 36.08 | |||||
| 10 | W11123943 | Switch, Rocker Arm Ice Maker (Replaces: 2149954) |
|
$ 32.99 | |||||
| 11 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 79.54 | ||||
| 12 | W11683241 | Led Light Assy (Replaces: W10279030) |
|
Immediately | $ 244.77 |
