01 - Cover Sheet

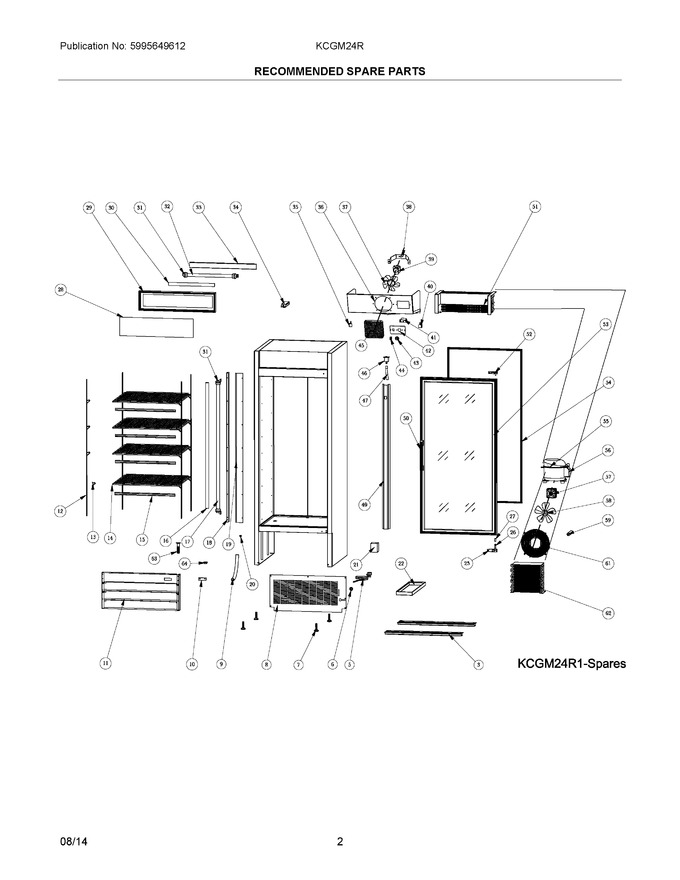

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304493124 | Rail, Foot Mount |
|
- | |||||
| 5 | 5304493100 | Power Cord, Electric, 115 V |
|
- | |||||
| 6 | 5304493101 | Bushing, Strain Relief, Power Cord |
|
- | |||||
| 7 | 5304493074 | Foot, Leveling Screw, Adjustable |
|
- | |||||
| 8 | 5304493126 | Panel, Svce Access, White, Rear |
|
- | |||||
| 9 | 5304492265 | Tube, Drain, Outer |
|
- | |||||
| 10 | 5304493083 | Display, Temperature, Fahrenheit |
|
- | |||||
| 11 | 5304493128 | Grille, Vent, White, Front, Louvers |
|
- | |||||
| 12 | 5304493130 | Pilaster, Shelf Mount, 9 Screw |
|
- | |||||
| 13 | 5304493090 | Clip, Shelf Mount |
|
- | |||||
| 14 | 5304493131 | Shelf, Steel, Vinyl Coated |
|
- | |||||
| 15 | 5304493132 | Tag Strip, Price Label, Plastic |
|
- | |||||
| 16 | 5304493133 | Cover, Lamp, Interior |
|
- | |||||
| 17 | 5304493134 | Lamp, Interior Light, 36 Watt |
|
- | |||||
| 18 | 5304493135 | Bracket, Lamp Mount, Inside Cab |
|
- | |||||
| 19 | 5304493136 | Baffle, Lamp |
|
- | |||||
| 20 | 5304493080 | Cover, Drain |
|
- | |||||
| 21 | 5304493077 | Transformer, Temp Display |
|
$ 84.74 | |||||
| 22 | 5304492276 | Drain Pan, Defrost |
|
- | |||||
| 25 | 5304493118 | Hinge, Door, Bottom Right |
|
- | |||||
| 26 | 5304493119 | Hinge Pin |
|
- | |||||
| 27 | 5304493120 | Bushing, Hinge Pin |
|
- | |||||
| 28 | 5304493139 | Panel, Front Display, Lamp Lens |
|
- | |||||
| 29 | 5304493140 | Frame, Lamp Housing, White |
|
- | |||||
| 30 | 5304493142 | Cover, Lamp, Top Display |
|
- | |||||
| 31 | 5304493086 | Holder, Lamp Socket |
|
- | |||||
| 32 | 5304493143 | Lamp, Top Display, 18 Watt |
|
- | |||||
| 33 | 5304493144 | Bracket, Lamp Mounting, Cab Top |
|
- | |||||
| 34 | 5304493116 | Ballast, Lamp |
|
- | |||||
| 35 | 5304493145 | Bracket, Evap Fan Cover, Left |
|
- | |||||
| 36 | 5304493159 | Cover, Fan Assembly, Evaporator |
|
- | |||||
| 37 | 5304493160 | Fan Blade, Evaporator Fan |
|
- | |||||
| 38 | 5304493161 | Bracket, Motor Mount, Evap Fan |
|
- | |||||
| 39 | 5304493162 | Motor, Evaporator Fan |
|
$ 228.69 | |||||
| 40 | 5304493146 | Bracket, Evap Fan Cover, Right |
|
- | |||||
| 41 | 5304493158 | Control, Temperature |
|
$ 171.33 | |||||
| 42 | 5304493163 | Panel, Controller Mtg. |
|
- | |||||
| 43 | 5304493114 | Knob, Temp Controller, Rotary |
|
- | |||||
| 44 | 5304493113 | Switch, Lamp, Rocker |
|
- | |||||
| 45 | 5304493115 | Cover, Evaporator Fan, Mesh |
|
$ 54.92 | |||||
| 46 | 5304493164 | Connector, Drain Hose |
|
- | |||||
| 47 | 5304493076 | Tube, Drain, Inner |
|
- | |||||
| 49 | 5304493165 | Channel, Center, Cabinet Back |
|
- | |||||
| 50 | 5304493093 | Handle, Door, Black |
|
- | |||||
| 51 | 5304493166 | Evaporator |
|
- | |||||
| 52 | 5304493167 | Hinge, Door, White, Upper Right |
|
- | |||||
| 53 | 5304493169 | Door, Glass |
|
- | |||||
| 54 | 5304493170 | Gasket, Door Seal |
|
- | |||||
| 55 | 5304493171 | Compressor |
|
- | |||||
| 56 | 5304493173 | Relay/starter |
|
- | |||||
| 56 | 5304493032 | Capacitor, Start |
|
- | |||||
| 56 | 5304493174 | Overload |
|
- | |||||
| 57 | 5304492271 | Motor, Condenser Fan |
|
- | |||||
| 58 | 5304492361 | Fan Blade, Condenser Fan |
|
- | |||||
| 59 | 5304492275 | Filter-drier |
|
$ 84.74 | |||||
| 61 | 5304492272 | Cover, Condenser Fan |
|
- | |||||
| 62 | 5304493172 | Condenser |
|
- | |||||
| 63 | 5304493078 | Spout, Drain Tube |
|
- | |||||
| 64 | 5304493079 | Bracket, Drain Spout |
|
- |
