01 - Cover Sheet

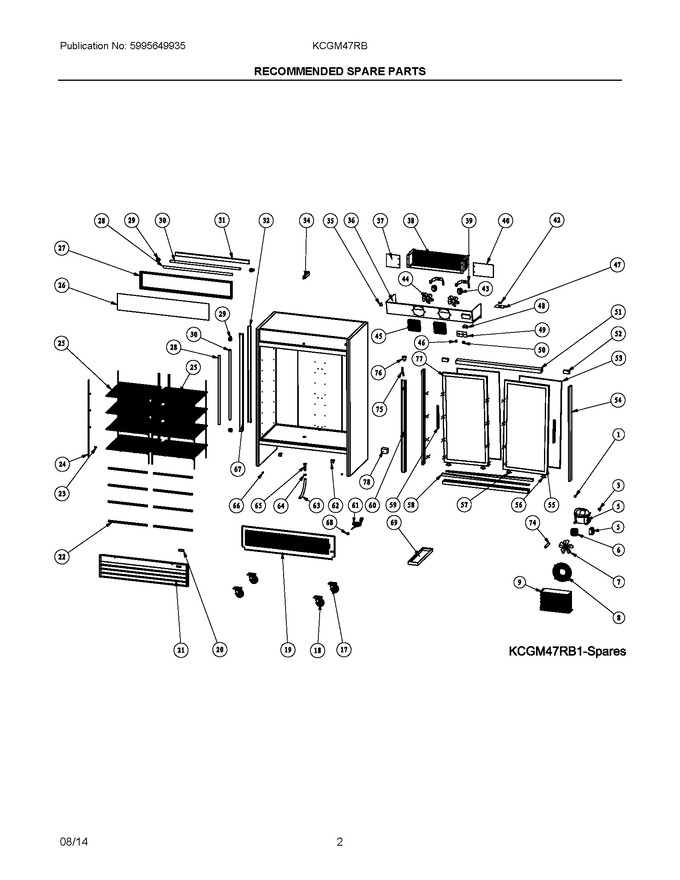

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304493068 | Overload |
|
$ 61.62 | |||||
| 3 | 5304493067 | Relay/starter |
|
$ 84.06 | |||||
| 5 | 5304493028 | Compressor, W/terminal Box |
|
- | |||||
| 6 | 5304492271 | Motor, Condenser Fan |
|
- | |||||
| 7 | 5304492361 | Fan Blade, Condenser Fan |
|
- | |||||
| 8 | 5304492272 | Cover, Condenser Fan |
|
- | |||||
| 9 | 5304493175 | Condenser |
|
- | |||||
| 17 | 5304492262 | Caster, 4 Inch Diameter |
|
- | |||||
| 18 | 5304492261 | Caster, 4 Inch Diameter, Locking |
|
- | |||||
| 19 | 5304493176 | Panel, Svce Access, Black, Rear |
|
- | |||||
| 20 | 5304493083 | Display, Temperature, Fahrenheit |
|
- | |||||
| 21 | 5304493178 | Grille, Vent, Black, Front, Louvers |
|
- | |||||
| 22 | 5304493179 | Tag Strip, Price Label, Plastic |
|
- | |||||
| 23 | 5304493090 | Clip, Shelf Mount |
|
- | |||||
| 24 | 5304493215 | Pilaster, Shelf Mount, 8 Screw |
|
- | |||||
| 25 | 5304496422 | Shelf, Left & Right |
|
- | |||||
| 26 | 5304493218 | Panel, Front Display, Lamp Lens |
|
- | |||||
| 27 | 5304493220 | Frame, Lamp Housing, Black |
|
- | |||||
| 28 | 5304493133 | Cover, Lamp, Interior |
|
- | |||||
| 29 | 5304493086 | Holder, Lamp Socket |
|
- | |||||
| 30 | 5304493134 | Lamp, Interior Light, 36 Watt |
|
- | |||||
| 31 | 5304493221 | Bracket, Lamp Mounting, Cab Top |
|
- | |||||
| 32 | 5304493225 | Base, Vertical Lamp, Cover |
|
- | |||||
| 34 | 5304493116 | Ballast, Lamp |
|
- | |||||
| 35 | 5304493145 | Bracket, Evap Fan Cover, Left |
|
- | |||||
| 36 | 5304493222 | Cover, Fan Assembly, Evaporator |
|
- | |||||
| 37 | 5304493223 | Bracket, Evap Mounting, Left |
|
- | |||||
| 38 | 5304493500 | Evaporator |
|
- | |||||
| 39 | 5304493161 | Bracket, Motor Mount, Evap Fan |
|
- | |||||
| 40 | 5304493224 | Bracket, Evap Mounting, Right |
|
- | |||||
| 42 | 5304493250 | Cover, Plate, Wire Protector |
|
- | |||||
| 43 | 5304493162 | Motor, Evaporator Fan |
|
$ 228.69 | |||||
| 44 | 5304493160 | Fan Blade, Evaporator Fan |
|
- | |||||
| 45 | 5304493115 | Cover, Evaporator Fan, Mesh |
|
$ 54.92 | |||||
| 46 | 5304493113 | Switch, Lamp, Rocker |
|
- | |||||
| 47 | 5304493251 | Plate, Wire Protector |
|
- | |||||
| 48 | 5304493158 | Control, Temperature |
|
$ 171.33 | |||||
| 49 | 5304493163 | Panel, Controller Mtg. |
|
- | |||||
| 50 | 5304493114 | Knob, Temp Controller, Rotary |
|
- | |||||
| 51 | 5304493252 | Frame, Cabinet, Top/bottom |
|
- | |||||
| 52 | 5304493253 | Block, Door, Travel Limiter |
|
- | |||||
| 53 | 5304493254 | Gasket, Door Seal |
|
- | |||||
| 54 | 5304493255 | Frame, Cabinet, Right/left Side |
|
- | |||||
| 55 | 5304493256 | Door, Sliding, Glass, Right |
|
- | |||||
| 56 | 5304493258 | Roller, Door, Large |
|
$ 19.11 | |||||
| 57 | 5304493259 | Roller, Door, Small |
|
- | |||||
| 58 | 5304493260 | Track, Door |
|
- | |||||
| 59 | 5304493261 | Handle, Door |
|
- | |||||
| 60 | 5304493262 | Channel, Center, Cabinet Back |
|
- | |||||
| 61 | 5304492267 | Power Cord, Electric, 115 V |
|
- | |||||
| 62 | 5304493263 | Clip, Grille Mount, Front |
|
- | |||||
| 63 | 5304492265 | Tube, Drain, Outer |
|
- | |||||
| 64 | 5304493079 | Bracket, Drain Spout |
|
- | |||||
| 65 | 5304493078 | Spout, Drain Tube |
|
- | |||||
| 66 | 5304493264 | Holder, Grille, Front |
|
- | |||||
| 67 | 5304493226 | Cover, Verical Lamp |
|
- | |||||
| 68 | 5304493101 | Bushing, Strain Relief, Power Cord |
|
- | |||||
| 69 | 5304492276 | Drain Pan, Defrost |
|
- | |||||
| 74 | 5304492275 | Filter-drier |
|
$ 84.74 | |||||
| 75 | 5304493076 | Tube, Drain, Inner |
|
- | |||||
| 76 | 5304493164 | Connector, Drain Hose |
|
- | |||||
| 77 | 5304493257 | Door, Sliding, Glass, Left |
|
- | |||||
| 78 | 5304493077 | Transformer, Temp Display |
|
$ 84.74 |
