SELECT A DIAGRAM

01 - Cover


03 - Cabinet/top


05 - Motor/tub


07 - Control Panel


08 - Wiring Diagram

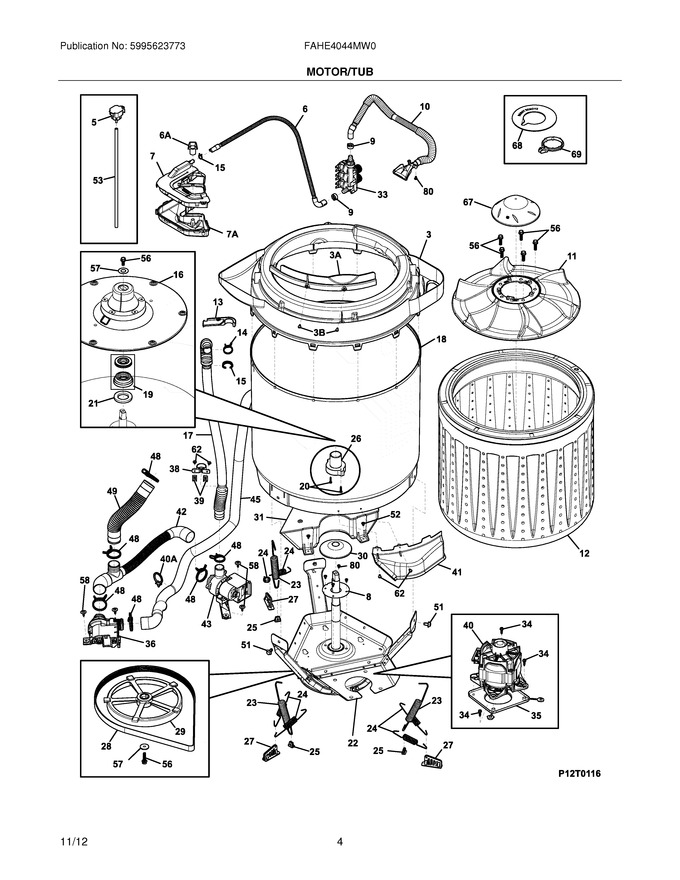

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	137351500		Cover, Splash Tub,recirculating				$ 204.54
6	137469800		Hose,dispenser Out				$ 63.00
7	137189048		Cover,dispenser, Soft				$ 31.29
8	137363400		Cover,bearing				$ 26.57
9	5304488479		Clamp			Immediately	$ 35.65
10	137205600		Hose,fill Nozzle Asm				$ 70.88
11	137494000		Wash Plate				$ 142.91
12	137492800		Tub, Spin,h+ W/o Lint Fil				$ 264.65
13	137456400		Bracket, Routing,recirc Hose		Appelez-nous	-
14	137087510		Clamp,hose		Appelez-nous	-
15	5304464772		Cable Tie,5.60 Inch ,plastic   (Replaces: 5303321209)				$ 11.81
16	137470000		Trunnion,large				$ 242.66
17	137364200		Hose,recir Pump Out				$ 126.12
18	137326201		Tub, Splash,w/air Dome/brng				$ 271.43
19	137547700		Tub Seal Kit				$ 73.03
20	3205150		Screw,tub Bearing ,8-12b X 0.750				$ 3.94
21	137272000		Grommet,seal				$ 50.19
22	137513900		Leg, Dome & Brackets,assembly				$ 499.00
23	137497110		Spring,vertical ,black				$ 48.35
24	137532600		Spring,horizontal				$ 33.92
25	137507100		Retainer,spring				$ 124.69
27	137491600		Retainer,insert, Spring				$ 23.99
28	137051400		Belt,poly V			Immediately	$ 52.76
29	137489000		Pulley,drive ,250 Mm				$ 233.10
30	137049800		Shield,slinger				$ 20.42
31	137466600		Counterweight				$ 219.82
34	137470600		Screw,quad Hex ,12-14 X 0.75				$ 12.08
35	137510300		Plate,motor Isolator				$ 29.24
38	137390800		Restraint,hose, Lower		Appelez-nous	-
39	137416300		Nut,speed U		Appelez-nous	-
41	137282900		Shield,motor		Appelez-nous	-
42	137364100		Hose,recir Pump Inlt				$ 149.50
48	5304536802		Clamp,hose ,wire   (Replaces: 131306234)			Immediately	$ 4.46
49	137364500		Hose,tub To Pump Rec				$ 51.82
51	137466300		Screw,hex Washer Head ,5/16 X 0.625 ,special		Appelez-nous	-
52	131202300		Screw,10-16ab X 0.625			Immediately	$ 14.96
53	5304401845		Tubing,vinyl, 16`` Long   (Replaces: 5303292722)				$ 64.58
56	137050600		Screw 5/16-18-2a,unc X 1.25				$ 19.32
57	134716700		Washer,flat   (Replaces: 137489500)				$ 2.36
58	134160900		Screw,washer Hd ,10-16ab X 0.75				$ 13.39
62	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
67	137193200		Cap,wash Plate				$ 55.02
68	131707800		Ring-drain Hose				$ 50.28
69	5303309503		Clip,drain Hose ,back Sheet				$ 7.88
80	137511100		Screw,hex Head ,10-24 X 0.500 ,type F				$ 13.39
3A	137419200		Shield,tub Cover				$ 27.08
3B	131302800		Screw,quadrex Ph ,10-16ab X 0.5			Immediately	$ 29.53
40A	137324300		Wiring Harness,motor				$ 112.61
6A	137352548		Cap,siphon Disp				$ 27.51
7A	137176448		Cup,dispenser, Soft				$ 36.25
F26	137466100		Bearing & Housing Assembly		Appelez-nous	-
F3	131901400		· Seal,splash Cover			Immediately	$ 24.10
F33	137465100		Valve-3 Coil,120v 60hz Water				$ 198.41
F36	137221600		Pump,drain   (Replaces: 137108100)			Immediately	$ 256.74
F40	137326000		Motor,3 Phase ,induction			Immediately	$ 439.90
F40A	137457100		Bracket,motor, Tlw, Lc				$ 37.43
F43	137389000		Pump,recirculation				$ 158.29
F45	134261300		Clip,drain Hose ,push-mount				$ 13.39
F45	134745300		Clip,drain Hose				$ 11.66
F45	134592700		Hose,drain			Immediately	$ 99.23
F45	131663500		Cushion,drain Hose ,base				$ 23.00
F45	131453000		Bushing,snap-in				$ 11.81
F5	137055800		Sensor,pressure ,low Freq Analog			Immediately	$ 100.80

    View Diagram in Separate Window       Print Part List
