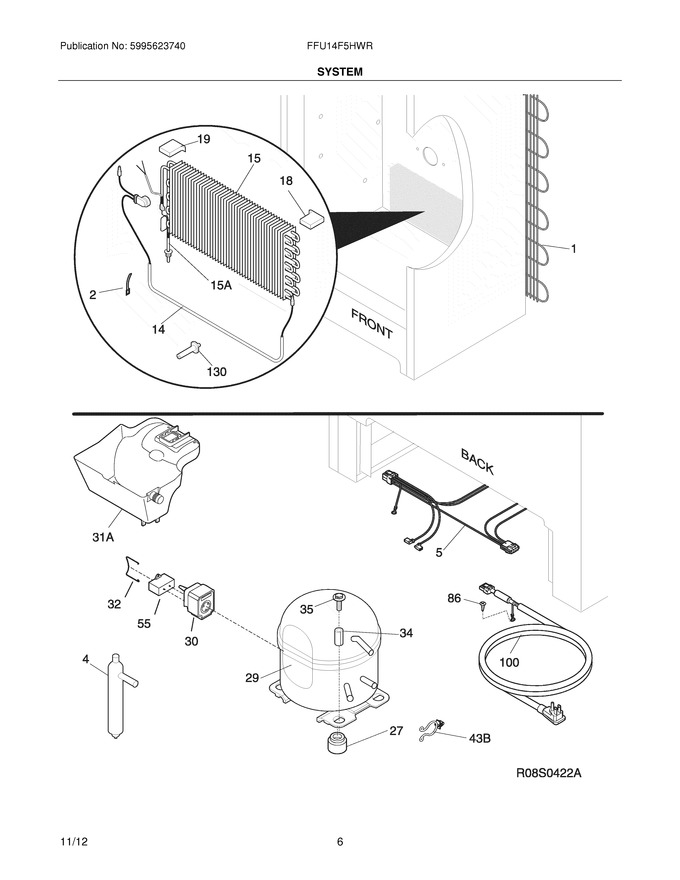

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 71.65
4	5303305677		Dryer-filter   (Replaces: 297396810)			Immediately	$ 35.19
18	297078701		Insulator-evap,styrofoam ,rh				$ 4.02
19	297078801		Insulator-evap,styrofoam ,lh				$ 4.02
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
30	216954235		Controller,compressor   (Replaces: 216954205)			Immediately	$ 96.90
32	216649200		Clip,controller				$ 6.30
34	5306594529		Sleeve-compressor				$ 10.34
35	297368500		Bolt,compressor		Appelez-nous	-
55	297286812		Capacitor-run,250 Va ,12 Mf   (Replaces: 297286802)			Immediately	$ 13.09
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
130	297244700		Support,evaporator Mtg				$ 4.73
31A	297413400		Pan-drain		Appelez-nous	-
43B	297315800		Clip,wire				$ 11.25
F1	5300123788		Condenser				$ 706.44
F100	297366805		Cord-power   (Replaces: 297169904)				$ 76.31
F14	5304496687		Heater,defrost ,w/thermostat ,115v ,term. Switch   (Replaces: 297348701)				$ 108.68
F15	297414800		Evaporator				$ 161.44
F15A	297348500		Heat Exchanger				$ 125.21
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297237300)			Immediately	$ 817.80
F5	297237600		Harness-main				$ 107.12
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	297018400		Thermistor			Immediately	$ 88.36
NI	216502500		Sleeve,suction Line				$ 12.05
NI	297014702		Plug-suction Line				$ 10.45
NI	297102800		Spacer-tube		Appelez-nous	-
NI	241500305		Screw, Self Pierce,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37
