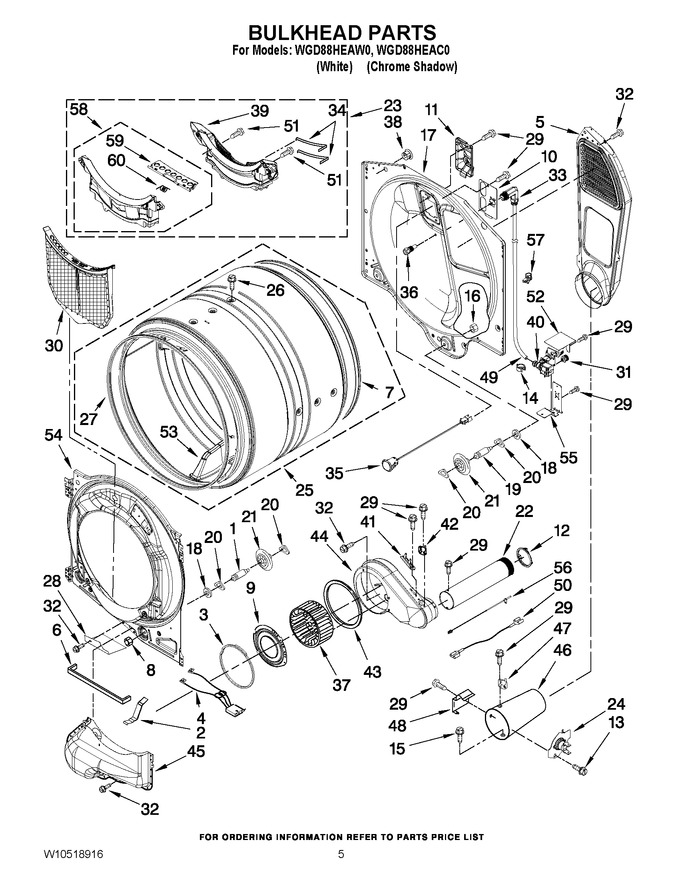

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller (r.h.) Thread (Replaces: W10359271) |
|
Immediately | $ 58.79 | ||||
| 2 | W10414388 | Clip, Spring |
|
$ 13.10 | |||||
| 3 | W11821372 | Seal, Blower Cover (Replaces: W10211899) |
|
$ 20.15 | |||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.28 | ||||
| 5 | WPW10293765 | Air Duct Assembly (Replaces: W10295533) |
|
$ 319.99 | |||||
| 6 | W11676493 | Seal, Outlet Housing (Replaces: W10211950) |
|
Immediately | $ 26.13 | ||||
| 7 | 280114 | Seal, Drum Front (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 8 | W11812294 | Nut, 3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | W10211901 | Collar Assembly |
|
$ 84.67 | |||||
| 10 | WPW10208422 | Rear Deflector (Replaces: W10208422) |
|
$ 87.14 | |||||
| 11 | W10249422 | Nozzle, Bracket Rear |
|
- | |||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 77.13 | |||||
| 13 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 14 | W10044599 | Clip, Push-to-connect |
|
$ 13.50 | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | WPW10080190 | Nut,3/8 X 16(l.h.) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 234.13 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller (l.h.) Thread (Replaces: W10359272) |
|
Immediately | $ 55.27 | ||||
| 20 | WPW10512946 | Tri Ring (Replaces: 690997) |
|
Immediately | $ 9.14 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 125.46 | ||||
| 23 | W10906551 | Grille Outlet Housing Assembly (Replaces: W10219012) |
|
Immediately | $ 317.09 | ||||
| 24 | WP8573713 | Thermal Cut-off (Replaces: 8573713) |
|
Immediately | $ 68.53 | ||||
| 25 | W10541657 | Complete Drum Assembly (Replaces: W10280779) |
|
Immediately | $ 485.59 | ||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
$ 7.36 | |||||
| 27 | W11193479 | Seal, Drum (Replaces: W10273050) |
|
Immediately | $ 20.36 | ||||
| 28 | W11257251 | Shield, Blower Housing (Replaces: W10128629) |
|
$ 64.85 | |||||
| 29 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 30 | W11758174 | Lint, Screen (Replaces: W10370972) |
|
Immediately | $ 50.94 | ||||
| 31 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 77.45 | |||||
| 32 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 33 | WPW10347739 | Nozzle & Hose Assembly (include Items, 36, 49 & 57) (Replaces: W10347739) |
|
$ 271.59 | |||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.58 | ||||
| 35 | W10460935 | Drum Light Assembly-led |
|
$ 77.97 | |||||
| 36 | WPW10277503 | Nozzle & Screen Assembly (Replaces: W10277503) |
|
$ 230.09 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 73.78 | ||||
| 38 | 8529007 | Plug, Rear Bulkhead |
|
$ 70.98 | |||||
| 39 | W11125442 | Grille, Outlet (Replaces: W10211903) |
|
$ 212.80 | |||||
| 40 | W10815373 | Valve, Water Inlet (Replaces: W10346403) |
|
Immediately | $ 143.98 | ||||
| 41 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | WP697770 | Seal, Cover Plate Blower Housing (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 134.72 | ||||
| 45 | WPW10211896 | Lint Duct Assembly (Replaces: W10211896) |
|
$ 197.73 | |||||
| 46 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 166.76 | |||||
| 47 | WP3391912 | Thermostat, High-limit 255°f (Replaces: 3391912) |
|
Immediately | $ 128.29 | ||||
| 48 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 49 | WPW10347739 | Hose (not Servicable Service With Item. 33 ) (Replaces: W10348621) |
|
$ 271.59 | |||||
| 50 | 3401710 | Jumper, Tco Hi-limit |
|
- | |||||
| 51 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 7.86 | ||||
| 52 | W10815373 | Cover, Inlet Valve (Replaces: W10184825) |
|
Immediately | $ 143.98 | ||||
| 53 | W10280771 | Baffle, Drum |
|
Immediately | $ 103.79 | ||||
| 54 | W10673491 | Bulkhead, Front (Replaces: W10211930) |
|
Immediately | $ 325.80 | ||||
| 55 | W10346402 | Bracket, Valve |
|
- | |||||
| 56 | WPW10419068 | Thermistor, Gas Inlet (Replaces: W10419068) |
|
$ 94.01 | |||||
| 57 | WP3391018 | Cable, Tie (Replaces: 3391018) |
|
$ 30.09 | |||||
| 58 | W10905013 | Housing & Door Assembly (Replaces: W10219013) |
|
$ 203.72 | |||||
| 59 | W11156832 | Door, Lint Screen (Replaces: W10219016) |
|
Immediately | $ 66.90 | ||||
| 60 | W11242876 | Spring, Lint Screen Door (Replaces: W10219015) |
|
$ 99.23 |
