01 - Cover Sheet

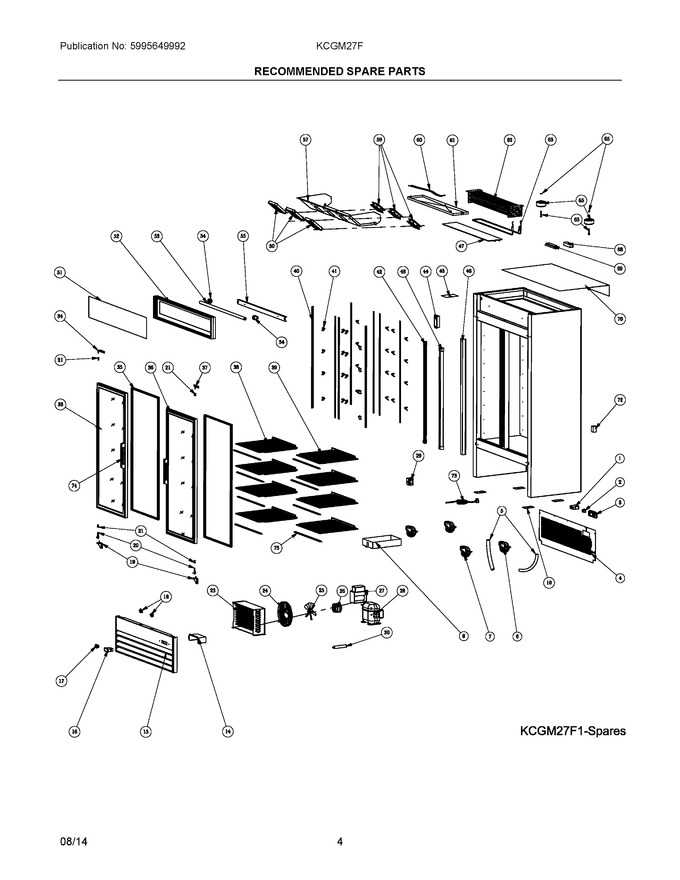

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304497840 | Controller, Temp, (juchuang) |
|
- | |||||
| 1 | 5304492245 | Controller, Temp, (carel) |
|
$ 237.66 | |||||
| 2 | 5304492248 | Switch, Power |
|
$ 59.61 | |||||
| 3 | 5304493277 | Housing, Controller, White |
|
- | |||||
| 4 | 5304493310 | Panel, Svce Access, Black, Rear |
|
- | |||||
| 5 | 5304492265 | Tube, Drain, Outer |
|
- | |||||
| 6 | 5304493319 | Caster, 4 Inch Diameter |
|
- | |||||
| 7 | 5304493320 | Caster, 4 Inch Diameter, Locking |
|
- | |||||
| 8 | 5304493321 | Pan, Drain, Condensate |
|
- | |||||
| 10 | 5304493323 | Block, Caster |
|
- | |||||
| 14 | 5304493325 | Shield, Water, Controller |
|
- | |||||
| 15 | 5304493326 | Grille, White, Front, Louvers |
|
$ 183.65 | |||||
| 16 | 5304493083 | Display, Temperature, Fahrenheit |
|
- | |||||
| 17 | 5304493279 | Switch, Lamp, Green |
|
- | |||||
| 18 | 5304492259 | Switch, Lamp, Door Activated |
|
- | |||||
| 19 | 5304493329 | Hinge, Bottom |
|
- | |||||
| 20 | 5304493267 | Hinge Pin |
|
- | |||||
| 21 | 5304493120 | Bushing, Hinge Pin |
|
- | |||||
| 23 | 5304492358 | Condenser |
|
- | |||||
| 24 | 5304492363 | Cover, Condenser Fan |
|
- | |||||
| 25 | 5304493331 | Fan Blade, Condenser Fan |
|
- | |||||
| 26 | 5304492360 | Motor, Condenser Fan |
|
$ 233.52 | |||||
| 27 | 5304496222 | Electrical Parts, Compressor |
|
- | |||||
| 28 | 5304493314 | Compressor, W/built-in Ovld |
|
- | |||||
| 29 | 5304492382 | Contactor, Ac |
|
- | |||||
| 30 | 5304492275 | Filter-drier |
|
$ 84.74 | |||||
| 33 | 5304493333 | Door, Glass, Left |
|
- | |||||
| 34 | 5304493335 | Hinge, Door, Upper Left |
|
- | |||||
| 35 | 5304493336 | Gasket, Door Seal |
|
$ 99.06 | |||||
| 36 | 5304493337 | Door, Glass, Right |
|
- | |||||
| 37 | 5304493281 | Hinge, Door, Upper Right |
|
- | |||||
| 38 | 5304493338 | Shelf, Left |
|
- | |||||
| 39 | 5304493339 | Shelf, Right |
|
- | |||||
| 40 | 5304493215 | Pilaster, Shelf Mount, 8 Screw |
|
- | |||||
| 41 | 5304493090 | Clip, Shelf Mount |
|
- | |||||
| 42 | 5304493340 | Lamp, Led, Left |
|
- | |||||
| 43 | 5304493341 | Lamp, Led, Right |
|
- | |||||
| 44 | 5304493342 | Housing, Wires, Led |
|
- | |||||
| 45 | 5304493286 | Plate, Wiring Cover |
|
- | |||||
| 46 | 5304493343 | Channel, Center, Cabinet Back |
|
- | |||||
| 47 | 5304493344 | Heater, Drain Pan |
|
- | |||||
| 50 | 5304493115 | Cover, Evaporator Fan, Mesh |
|
$ 54.92 | |||||
| 51 | 5304493346 | Panel, Front Display, Lamp Lens |
|
- | |||||
| 52 | 5304493347 | Frame, Lamp Housing |
|
- | |||||
| 53 | 5304493088 | Lamp, Interior Light, 30 Watt |
|
$ 60.96 | |||||
| 54 | 5304493348 | Holder, Lamp Socket |
|
- | |||||
| 55 | 5304493349 | Bracket, Lamp Mounting, Cab Top |
|
- | |||||
| 57 | 5304493350 | Cover, Fan Assembly, Evaporator |
|
- | |||||
| 59 | 5304492231 | Fan Assy, Evaporator, With Motor |
|
- | |||||
| 60 | 5304492344 | Heater, Drain Hose |
|
- | |||||
| 61 | 5304493352 | Pan, Defrost Drain, Evaporator |
|
- | |||||
| 62 | 5304493353 | Evaporator |
|
- | |||||
| 63 | 5304493354 | Heater, Defrost, Evaporator |
|
- | |||||
| 65 | 5304493307 | Transformer Assy, Door Heater |
|
- | |||||
| 68 | 5304493305 | Ballast, Lamp |
|
- | |||||
| 69 | 5304493116 | Ballast, Lamp |
|
- | |||||
| 70 | 5304493355 | Cover, Cabinet, White, Top |
|
- | |||||
| 72 | 5304493077 | Transformer, Temp Display |
|
$ 84.74 | |||||
| 73 | 5304492356 | Power Cord, Electric, 115 V |
|
- | |||||
| 74 | 5304493280 | Handle, Door |
|
- | |||||
| 75 | 5304493309 | Tag Strip, Price Label, Plastic |
|
- |
