01 - Cooktop Parts

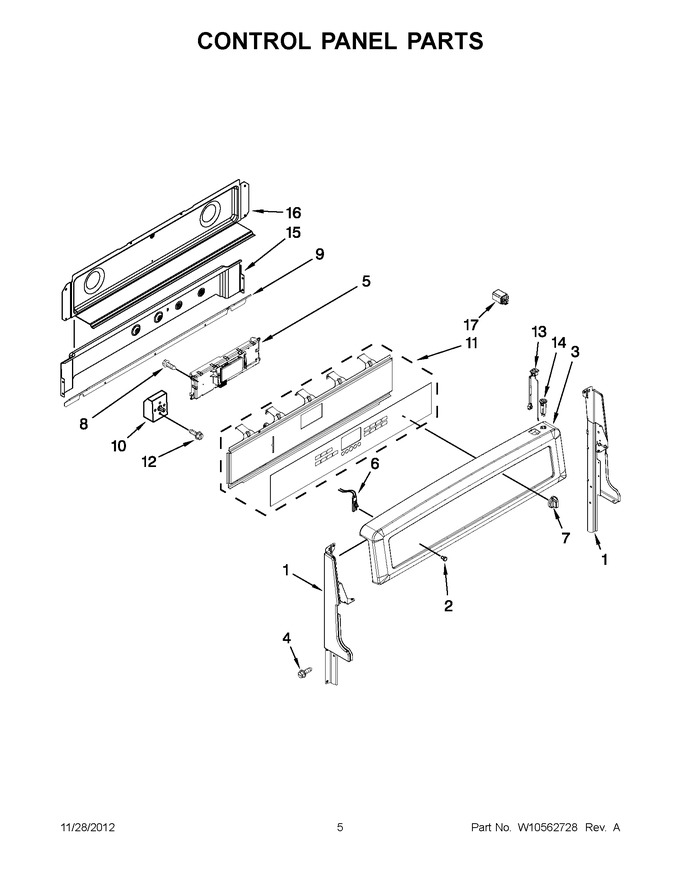

02 - Control Panel Parts
03 - Chassis Parts
04 - Rack And Element Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black, Left) |
|
$ 92.84 | |||||
| 1 | W10319111 | Support, Backguard (black, Right) |
|
$ 43.80 | |||||
| 1 | W10319110 | Support, Backguard (white, Left) |
|
$ 95.95 | |||||
| 1 | W10319112 | Support, Backguard (white, Right) |
|
$ 93.79 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 3 | W10225556 | Console (black) |
|
$ 109.86 | |||||
| 3 | W10214551 | Console (white) |
|
$ 104.18 | |||||
| 3 | WPW10225557 | Console (stainless) (Replaces: W10225557) |
|
$ 185.73 | |||||
| 4 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 5 | W10365407 | Electric, Control Mrc2 |
|
$ 401.35 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 7 | W10294796 | Knob (black) |
|
$ 21.03 | |||||
| 7 | W10294794 | Knob (white) |
|
$ 21.03 | |||||
| 7 | W10294791 | Knob (stainless) |
|
$ 45.33 | |||||
| 8 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 96.60 | |||||
| 10 | WP7403P238-60 | Switch, Infinite (left Rear & Right Rear) (Replaces: 7403P373-60) |
|
Immediately | $ 74.78 | ||||
| 10 | WPW10295048 | Switch, Infinite (right Front) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 10 | WP74010824 | Switch, Infinite (left Front) (Replaces: 7450P011-60) |
|
Immediately | $ 114.32 | ||||
| 11 | W10321789 | Assembly, Membrane (incl. Bracket) (white) |
|
$ 225.96 | |||||
| 11 | W10321787 | Assembly, Membrane (incl. Bracket) (black) |
|
Immediately | $ 208.14 | ||||
| 11 | W10321788 | Assembly, Membrane (incl. Bracket) (stainless) |
|
$ 159.01 | |||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 13 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 111.11 | ||||
| 13 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 14 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 14 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 60.91 | ||||
| 15 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 16 | W10296773 | Cover, Backguard |
|
$ 194.52 | |||||
| 17 | W10326400 | Relay (12v) |
|
$ 70.90 |
