Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13109223SQ Door, Freezer (stainless)   (Replaces: 13109223S) Special Order $ 1,033.85

2 WPW10314517K Handle, Door (stainless)   (Replaces: W10314517N) Special Order $ 219.03

4 W10443312 Gasket, Door (grey) Special Order $ 251.95

5 WPW10661886 Screw   (Replaces: W10460893) In-Stock Immediately $ 11.59


    View Diagram in Separate Window     Print Icon   Print Part List

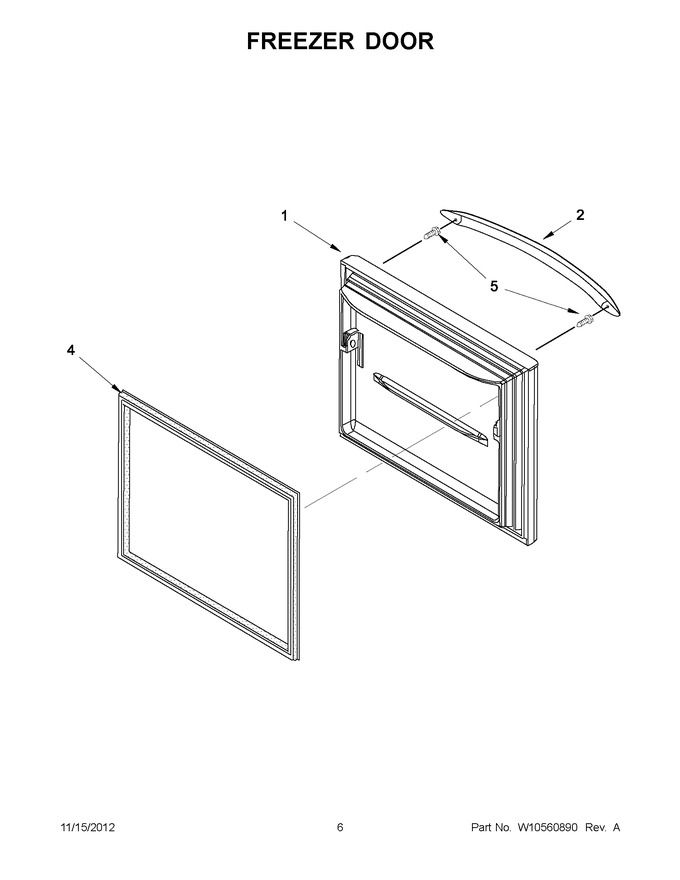

Diagram for KBLS19KTMS3
