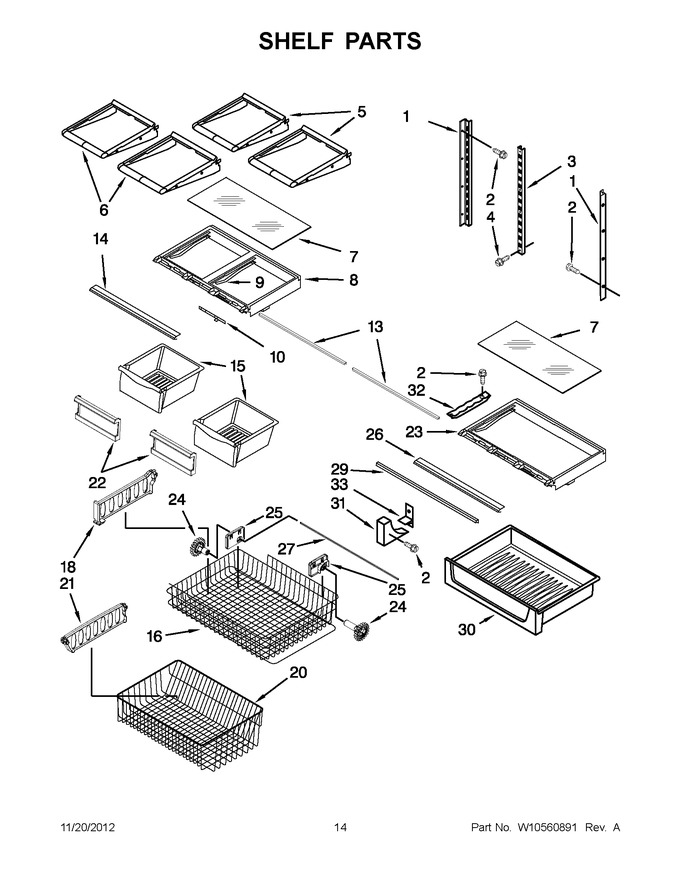

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251970 | Ladder, Side |
|
$ 29.89 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 4 | W10215666 | Screw |
|
$ 9.53 | |||||
| 5 | W11402522 | Shelf, Stationary (Replaces: 12463608) |
|
$ 203.51 | |||||
| 6 | W11402522 | Shelf, Glide Out (Replaces: 12463408) |
|
$ 203.51 | |||||
| 7 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823N) |
|
Immediately | $ 209.75 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 9 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 118.46 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 13 | WP12227302WD | Brace, Crisper Cover (Replaces: 12227302WD) |
|
$ 111.60 | |||||
| 14 | WPW10231481 | Trim, Crisper (Replaces: W10231481) |
|
$ 117.42 | |||||
| 15 | W10833528 | Pan, Crisper (Replaces: 12531305) |
|
Immediately | $ 139.95 | ||||
| 16 | W10348236 | Basket, Freezer (upper) |
|
$ 97.31 | |||||
| 18 | W10241046 | Divider, Upper |
|
Immediately | $ 29.19 | ||||
| 20 | W10503182 | Basket, Freezer (lower) |
|
$ 241.97 | |||||
| 21 | W10847995 | Divider, Lower Basket (Replaces: W10146440) |
|
$ 92.48 | |||||
| 22 | W10833529 | Front, Crisper (Replaces: 12643602) |
|
$ 75.75 | |||||
| 23 | WPW10671240 | Frame, Crisper (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 24 | WPW10474715 | Gear Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 24 | WPW10474716 | Gear Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 25 | W10348260 | Mount (right Hand) |
|
$ 89.90 | |||||
| 25 | W10348259 | Mount (left Hand) |
|
$ 89.87 | |||||
| 26 | W10656984 | Trim, Pantry Front (Replaces: W10231491) |
|
$ 84.70 | |||||
| 27 | 12812906WD | Shaft, Rack |
|
$ 42.54 | |||||
| 29 | WP12227302WD | Brace, Crisper Cover (Replaces: 12227302WD) |
|
$ 111.60 | |||||
| 30 | W10328331 | Drawer, Pantry |
|
Immediately | $ 158.69 | ||||
| 31 | WP67001721 | Support, Pantry (left Hand) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 31 | WP67001722 | Support, Pantry (right Hand) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 32 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 33 | WP67001716 | Hook, Ladder (Replaces: 12531802) |
|
Immediately | $ 11.14 |
