SELECT A DIAGRAM

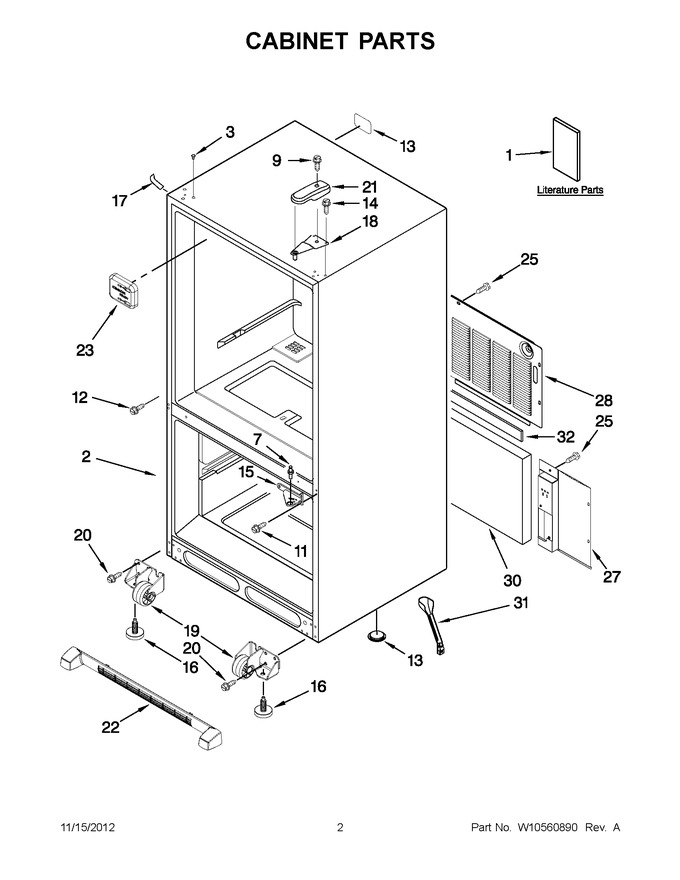

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door


04 - Refrigerator Liner Parts


05 - Refrigerator Door


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10366210		Use & Care Guide		Appelez-nous	-
1	W10517966		Tech Sheet		Appelez-nous	-
1	W10183307		Energy Guide		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	A3076901		Plug, Button				$ 5.70
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 7.90
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
11	W11573362		Screw   (Replaces: W10339086)				$ 13.25
12	WP98165		Screw   (Replaces: 12990521)				$ 7.71
13	W11685757		Label, Fill Tube   (Replaces: 12249902)				$ 6.67
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.59
15	W11689473		Hinge, Center (grey)   (Replaces: 12607103AP)				$ 62.81
16	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
17	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.26
18	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 42.42
19	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 33.62
19	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 33.62
20	WP98165		Screw   (Replaces: 12990521)				$ 7.71
21	W11106366		Cover, Top Hinge (grey)   (Replaces: 12477601AP)				$ 68.24
22	WPW10534165		Grille Assembly (includes Clips) (grey)   (Replaces: W10236548)			Immediately	$ 62.66
23	WP67001098		Cover, Fill Tube   (Replaces: 12477501)				$ 7.59
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.57
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 19.22
28	W10210978		Cover, Unit				$ 181.60
30	12820505		Insulation				$ 71.70
31	W10619951		Tube, Drain   (Replaces: W10344401)			Immediately	$ 41.61
32	B5759655		Gasket				$ 11.73
