SELECT A DIAGRAM

Diagram for 01 - Door Panel Parts
01 - Door Panel Parts

Diagram for 02 - Control Panel And Latch Parts
02 - Control Panel And Latch Parts

Diagram for 03 - Inner Door Parts
03 - Inner Door Parts

Diagram for 04 - Fill, Drain And Overfill Parts
04 - Fill, Drain And Overfill Parts

Diagram for 05 - Tub And Frame Parts
05 - Tub And Frame Parts

Diagram for 06 - Pump, Washarm And Motor Parts
06 - Pump, Washarm And Motor Parts

Diagram for 07 - Upper Wash And Rinse Parts
07 - Upper Wash And Rinse Parts

Diagram for 08 - Heater Parts
08 - Heater Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Optional Parts (not Included)
11 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10490724 Energy Guide Appelez-nous -
1 W10455257 Tech Sheet (english) Appelez-nous -
1 W10321621 Instructions, Installation Appelez-nous -
1 W10455258 Tech Sheet (french) Appelez-nous -
1 W10300929 Use & Care Guide (english/french) Appelez-nous -
1 W10300597 Use & Care Guide (spanish) Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Barrier, Vapor Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 WPW10441007 Access Panel (white)   (Replaces: W10441007) Special Order $ 170.94

5 W11763736 Access Panel (black)   (Replaces: W10441006) In-Stock Immediately $ 42.25

6 WPW10195873 Panel, Front (includes Items 8, 10 & 11) (black)   (Replaces: W10195873) Special Order $ 363.36

6 W10195872 Panel, Front (includes Items 8, 10 & 11) (white) Special Order $ 171.59

6 WPW10195870 Panel, Front (includes Items 8, 10 & 11) (stainless)   (Replaces: W10195870) Special Order $ 397.17

7 WPW10307614 Screw   (Replaces: W10307614) In-Stock Immediately $ 7.55

8 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

8 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

8 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

9 W10195736A Handle Assembly (includes Item 7) (white)   (Replaces: W10195736) Special Order $ 63.06

9 W10195735 Handle Assembly (includes Item 7) (black) Appelez-nous -
9 W10195738 Handle Assembly (includes Item 7) (stainless) Appelez-nous -
10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 W10319007 Light Pipe Special Order $ 72.00

12 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

12 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W11116870 Bracket, Control Panel   (Replaces: W10194911) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26


    View Diagram in Separate Window     Print Icon   Print Part List

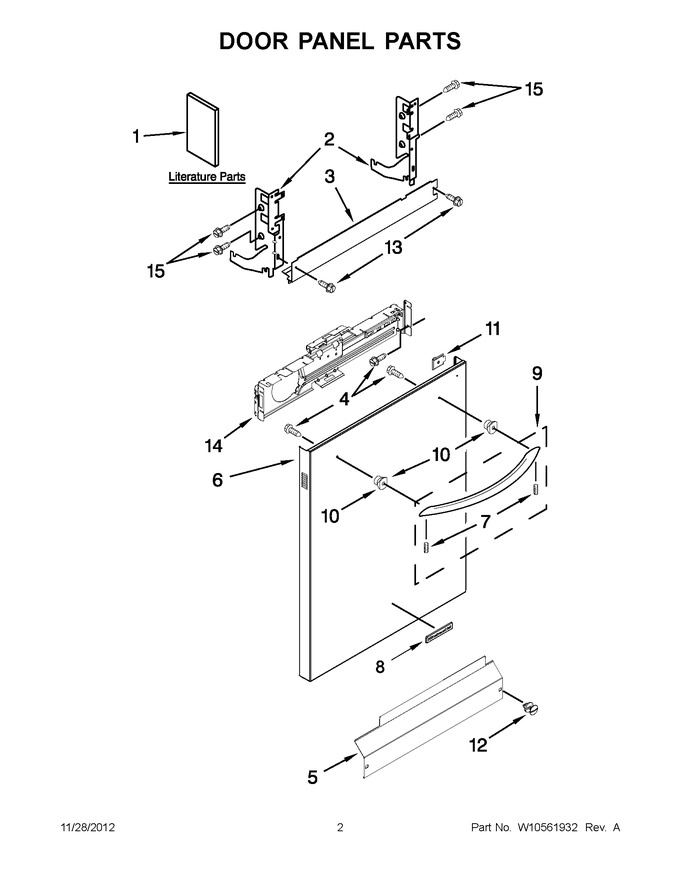

Diagram for KUDL15FXWH6
