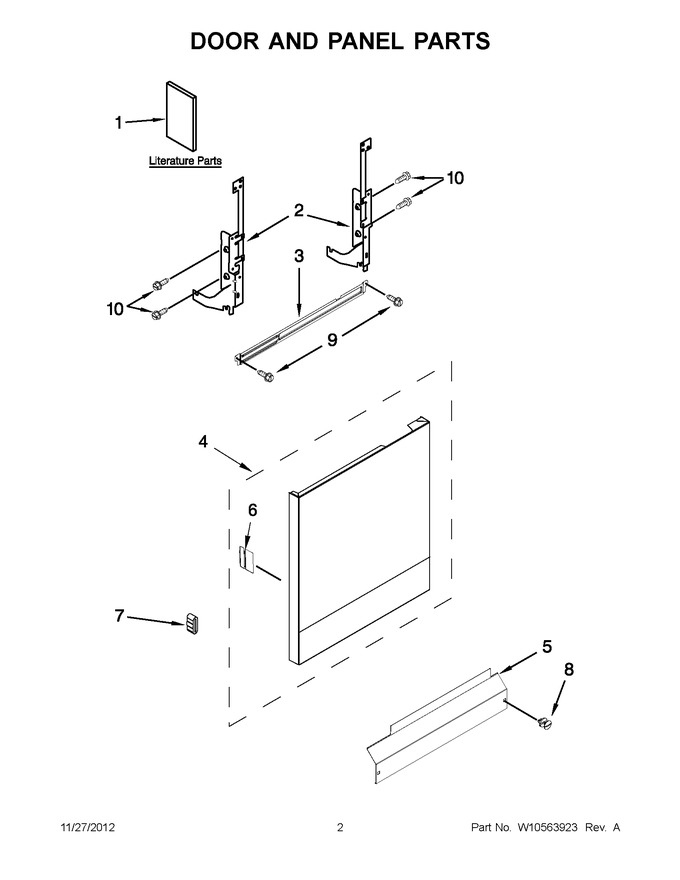

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10506207		Energy Guide		Appelez-nous	-
1	W10461429		Tech Sheet (english)		Appelez-nous	-
1	W10255025		Instructions, Installation		Appelez-nous	-
1	W10461430		Tech Sheet (french)		Appelez-nous	-
1	W10380253		Use & Care Guide, English/french		Appelez-nous	-
1	W10350360		Use & Care Guide (spanish)		Appelez-nous	-
2	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 75.54
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 64.59
3	W10850371		Stiffener, Door   (Replaces: W10195120)			Immediately	$ 29.59
4	W10299778		Panel Front (white)				$ 302.97
4	W10299779		Panel Front (black)				$ 226.64
5	W10441003		Access Panel (black)			Immediately	$ 75.02
6	W10255097		Protector		Appelez-nous	-
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 6.01
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 27.35
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92
