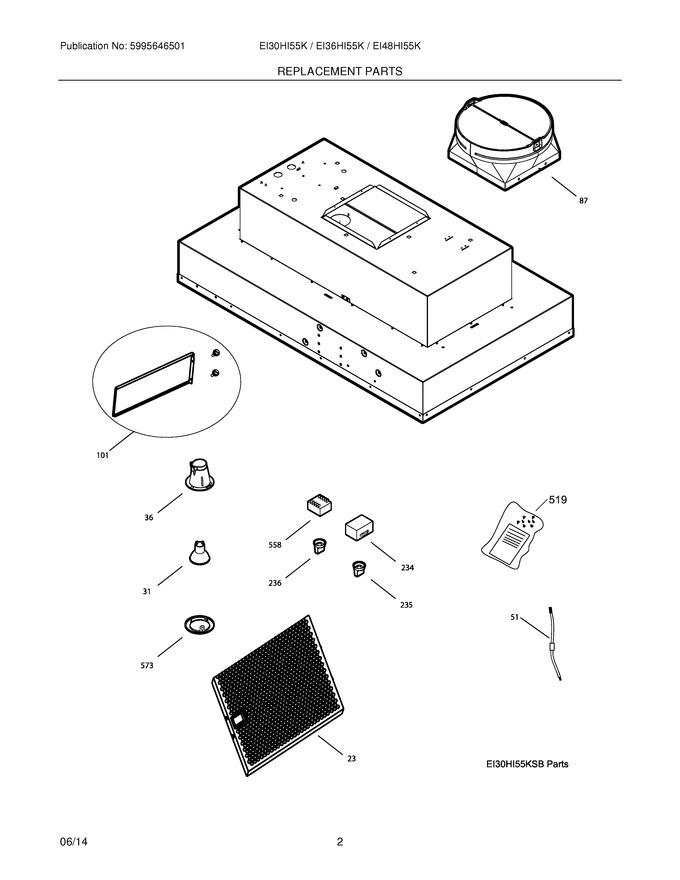

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 87 | 5304487841 | Damper,exhaust |
|
- | |||||
| 101 | 5304487851 | Spacer,filter |
|
- | |||||
| 235 | 5304487844 | Knob,motor Switch |
|
- | |||||
| 236 | 5304487845 | Knob,light Switch |
|
- | |||||
| 519 | 5304487846 | Hardware,installation ,w/user Manual |
|
- | |||||
| 573 | 5304487849 | Bezel,lamp Assembly |
|
- | |||||
| F23 | 5304464265 | Filter,grease |
|
$ 108.76 | |||||
| F234 | 5304487843 | Switch,motor ,rotary |
|
- | |||||
| F31 | 5304482257 | Lamp,halogen ,50 W ,120 V (Replaces: 5304466038) |
|
$ 103.67 | |||||
| F36 | 5304487848 | Lamp Holder,socket ,w/housing |
|
$ 205.52 | |||||
| F51 | 5304487852 | Wiring Harness,lamp ,with Diode |
|
- | |||||
| F558 | 5304487842 | Switch,light/lamp ,rotary |
|
- |
