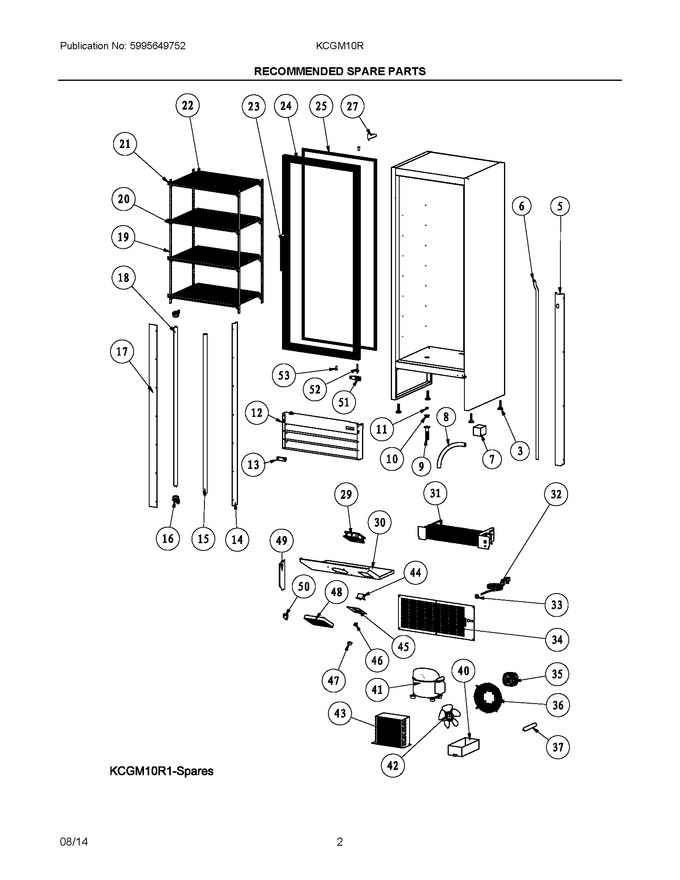

SELECT A DIAGRAM

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304493074		Foot, Leveling Screw, Adjustable		Appelez-nous	-
5	5304493075		Channel, Center, Cabinet Back		Appelez-nous	-
6	5304493076		Tube, Drain, Inner		Appelez-nous	-
7	5304493077		Transformer, Temp Display				$ 84.74
8	5304492265		Tube, Drain, Outer		Appelez-nous	-
9	5304493078		Spout, Drain Tube		Appelez-nous	-
10	5304493079		Bracket, Drain Spout		Appelez-nous	-
11	5304493080		Cover, Drain		Appelez-nous	-
12	5304493081		Grille, White, Front, Louvers		Appelez-nous	-
13	5304493083		Display, Temperature, Fahrenheit		Appelez-nous	-
14	5304493084		Bracket, Lamp Mount, Inside Cab		Appelez-nous	-
15	5304493085		Cover, Lamp, Interior		Appelez-nous	-
16	5304493086		Holder, Lamp Socket		Appelez-nous	-
17	5304493087		Baffle, Lamp		Appelez-nous	-
18	5304493088		Lamp, Interior Light, 30 Watt				$ 60.96
19	5304493089		Pilaster, Shelf Mount, 6 Screw		Appelez-nous	-
20	5304493090		Clip, Shelf Mount		Appelez-nous	-
21	5304493091		Tag Strip, Price Label, Plastic		Appelez-nous	-
22	5304493092		Shelf, Steel, Vinyl Coated		Appelez-nous	-
23	5304493093		Handle, Door, Black		Appelez-nous	-
24	5304493094		Door, Glass		Appelez-nous	-
25	5304493095		Gasket, Door		Appelez-nous	-
27	5304493096		Hinge, Door, White, Upper		Appelez-nous	-
29	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
30	5304493098		Cover, Fan Assembly, Evaporator		Appelez-nous	-
31	5304493099		Evaporator		Appelez-nous	-
32	5304493100		Power Cord, Electric, 115 V		Appelez-nous	-
33	5304493101		Bushing, Strain Relief, Power Cord		Appelez-nous	-
34	5304493102		Panel, Svce Access, White, Rear		Appelez-nous	-
35	5304493104		Motor, Condenser Fan		Appelez-nous	-
36	5304493105		Grille, Fan Cover, Condenser		Appelez-nous	-
37	5304493106		Filter-drier		Appelez-nous	-
40	5304493109		Pan, Drain, Condenser		Appelez-nous	-
41	5304493026		Compressor, W/terminal Box		Appelez-nous	-
42	5304493110		Fan Blade, Condenser Fan		Appelez-nous	-
43	5304493111		Condenser		Appelez-nous	-
44	5304493158		Control, Temperature				$ 171.33
45	5304493112		Panel, Controller Mtg.		Appelez-nous	-
46	5304493113		Switch, Lamp, Rocker		Appelez-nous	-
47	5304493114		Knob, Temp Controller, Rotary		Appelez-nous	-
48	5304493115		Cover, Evaporator Fan, Mesh				$ 54.92
49	5304493116		Ballast, Lamp		Appelez-nous	-
50	5304493117		Connector, Drain Hose		Appelez-nous	-
51	5304493118		Hinge, Door, Bottom Right		Appelez-nous	-
52	5304493119		Hinge Pin		Appelez-nous	-
53	5304493120		Bushing, Hinge Pin		Appelez-nous	-
NIA	5304493030		Relay/starter		Appelez-nous	-
NIB	5304493031		Overload		Appelez-nous	-
NIC	5304493032		Capacitor, Start		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
