SELECT A DIAGRAM

01 - Cover Sheet

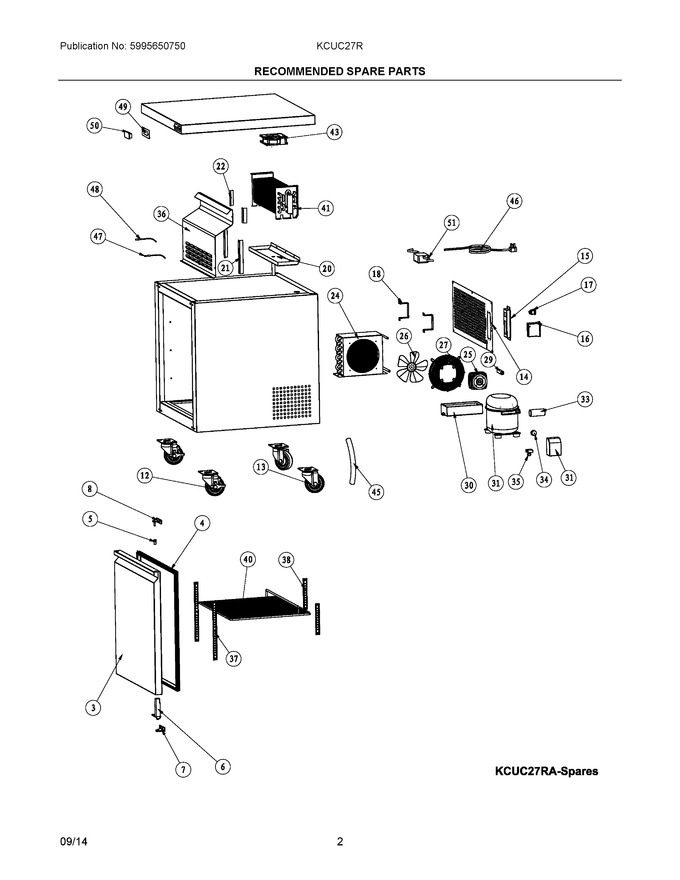

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304493557		Door		Appelez-nous	-
4	5304493559		Gasket, Door Seal				$ 54.27
5	5304493360		Hinge Pin, Door, Upper		Appelez-nous	-
6	5304492217		Door Closer, Hinge Spring		Appelez-nous	-
7	5304493361		Hinge, Door, Bottom Right		Appelez-nous	-
8	5304493362		Hinge, Door, Upper Right		Appelez-nous	-
12	5304492261		Caster, 4 Inch Diameter, Locking		Appelez-nous	-
13	5304492262		Caster, 4 Inch Diameter		Appelez-nous	-
14	5304493563		Panel, Svce Access, Rear Grille		Appelez-nous	-
15	5304493383		Control Box		Appelez-nous	-
16	5304492240		Controller, Temp, (carel)		Appelez-nous	-
17	5304492248		Switch, Power				$ 59.61
18	5304493382		Bracket, Stand Off		Appelez-nous	-
19	5304493393		Rail, Compressor Mtg		Appelez-nous	-
20	5304493372		Pan, Defrost Drain, Evaporator		Appelez-nous	-
24	5304493111		Condenser		Appelez-nous	-
25	5304493104		Motor, Condenser Fan		Appelez-nous	-
26	5304493110		Fan Blade, Condenser Fan		Appelez-nous	-
27	5304493105		Grille, Fan Cover, Condenser		Appelez-nous	-
29	5304493106		Filter-drier		Appelez-nous	-
30	5304493395		Pan, Drain, Condensate		Appelez-nous	-
31	5304493026		Compressor, W/terminal Box		Appelez-nous	-
33	5304493032		Capacitor, Start		Appelez-nous	-
34	5304493031		Overload		Appelez-nous	-
35	5304493030		Relay/starter		Appelez-nous	-
36	5304493564		Cover, Evaporator		Appelez-nous	-
37	5304493397		Pilaster, Shelf Mount, 3 Screw		Appelez-nous	-
38	5304493396		Pilaster, Shelf Mount, 2 Screw		Appelez-nous	-
40	5304493565		Shelf		Appelez-nous	-
41	5304493566		Evaporator		Appelez-nous	-
43	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
45	5304493401		Tube, Drain, 16 Mm Dia		Appelez-nous	-
46	5304493100		Power Cord, Electric, 115 V		Appelez-nous	-
47	5304492340		Probe, Temp Controller				$ 77.21
48	5304493402		Probe, Temp Display, Fahrenheit		Appelez-nous	-
49	5304493400		Plate, Temp Display		Appelez-nous	-
50	5304493083		Display, Temperature, Fahrenheit		Appelez-nous	-
51	5304493077		Transformer, Temp Display				$ 84.74
16A	5304496527		Controller, Temp, (juchuang)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
