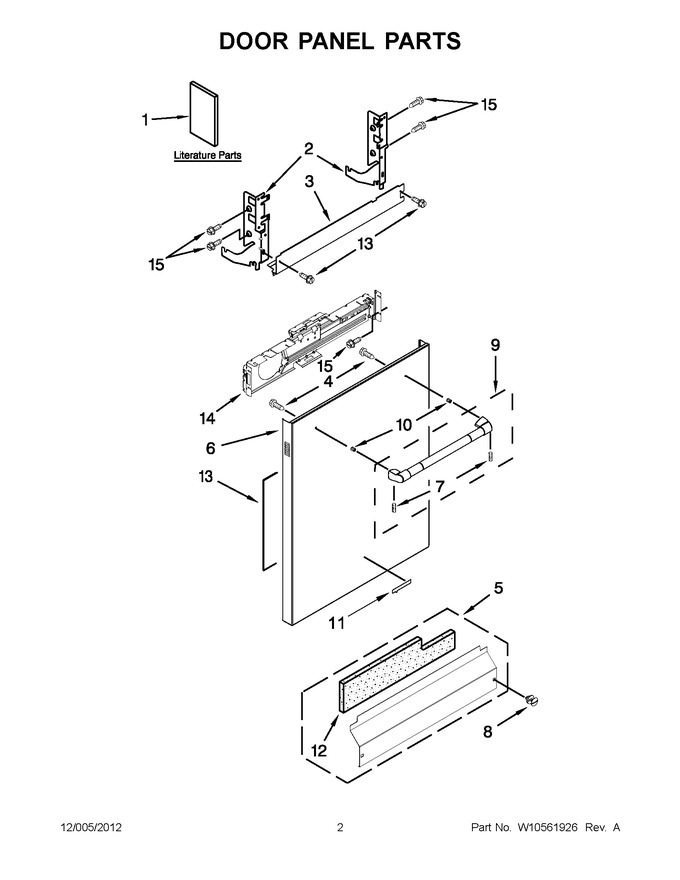

01 - Door Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10501738		Installation Instructions		Appelez-nous	-
1	W10490712		Energy Guide		Appelez-nous	-
1	W10501737		Use & Care Guide, Multilingual		Appelez-nous	-
1	W10455257		Tech Sheet, English		Appelez-nous	-
1	W10455258		Tech Sheet, French		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	WPW10409492		Panel, Front (stainless)   (Replaces: W10409492)				$ 377.12
7	W10276608		Screw, Set				$ 46.73
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	WPW10409518		Handle Assembly (stainless)   (Replaces: W10409518)				$ 278.76
10	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 19.33
11	W11636815		Nameplate (stainless)   (Replaces: W10114211)				$ 45.35
12	W10831329		Insulation Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
13	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
14	W11116870		Bracket, Control Panel   (Replaces: W10194911)				$ 89.95
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26

    View Diagram in Separate Window       Print Part List
