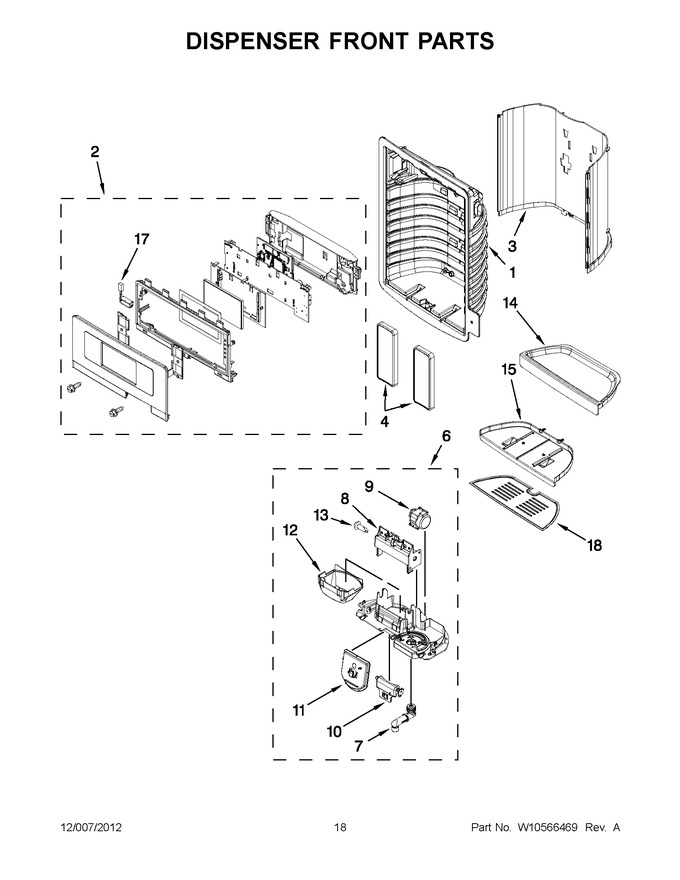

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10509461		Ui Assemly (stainless)				$ 360.29
3	W10305890		False Wall Disp. (stainless)				$ 92.99
4	WPW10353848		Assembly, Pad (grey)   (Replaces: W10353848)				$ 321.56
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 205.88
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
12	WPW10435760		Guide, Ice   (Replaces: W10339578)			Immediately	$ 23.94
13	W10174818		Clip, Motor Coupling		Appelez-nous	-
14	WPW10305897		Tray-dispenser (stainless)   (Replaces: W10305897)				$ 84.81
15	WPW10267863		Slide-tray Disp. (grey)   (Replaces: W10267863)				$ 73.22
17	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
18	W10215957		Grate, Drip Tray				$ 52.76
