01 - Cooktop, Burner And Grate Parts

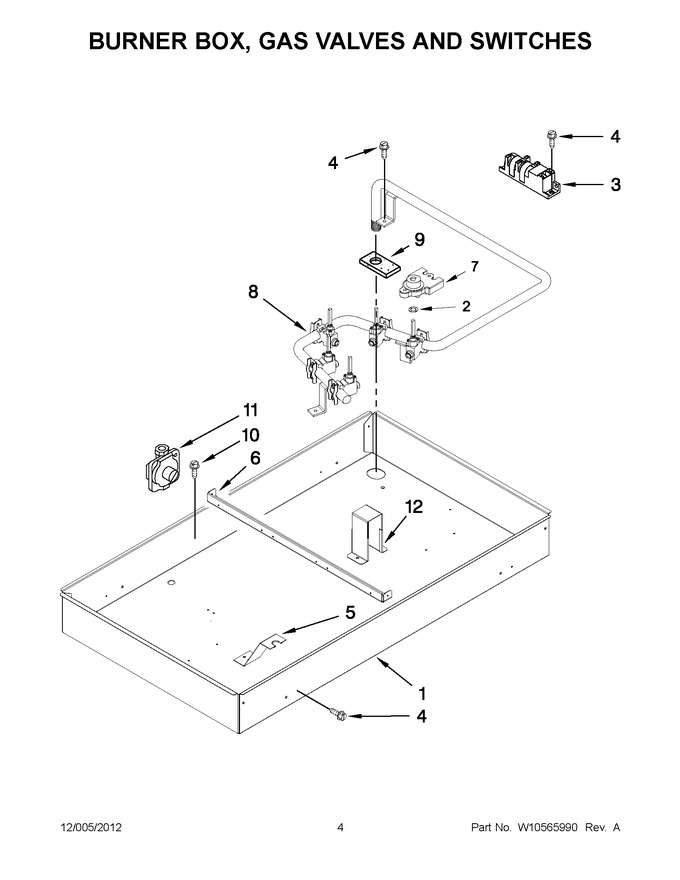

02 - Burner Box, Gas Valves And Switches
03 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 2 | WP74010652 | Gasket (left) (Replaces: 7201P135-60) |
|
$ 86.00 | |||||
| 2 | WP74010776 | Gasket (right) (Replaces: 7201P144-60) |
|
$ 74.30 | |||||
| 3 | WP8286828 | Module, Spark (Replaces: 7431P049-60) |
|
$ 347.18 | |||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 5 | W10536159 | Bracket, Orifice Holder |
|
- | |||||
| 6 | 8405P087-60 | Bracket, Downdraft Brace |
|
- | |||||
| 7 | WP74007774 | Switch, Spark (right) (Replaces: 7403P820-60) |
|
$ 143.48 | |||||
| 7 | 7403P819-60 | Switch, Spark (center) |
|
- | |||||
| 7 | WP74007753 | Switch, Spark (left) (Replaces: 7403P818-60) |
|
$ 142.08 | |||||
| 8 | WP7513P351-60 | Pipe, Manifold (includes Valves) (Replaces: 7513P351-60) |
|
$ 336.12 | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 68.73 | |||||
| 10 | WP71001171 | Screw (Replaces: 7101P460-60) |
|
$ 7.30 | |||||
| 11 | W11087445 | Regulator, Pressure (Replaces: 7510P093-60) |
|
Immediately | $ 211.40 | ||||
| 12 | 3807F689-51 | Support, Glass |
|
- |
