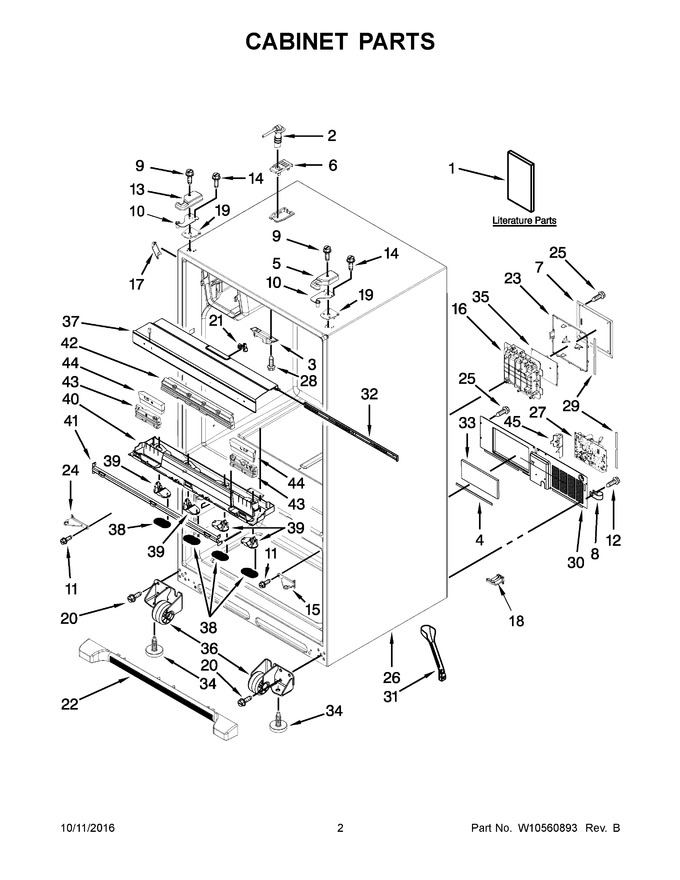

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10509610		Tech Sheet		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: 12961401)			Immediately	$ 62.39
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	67005958		Cover, Top Hinge (right) (white)   (Replaces: 12962302W)				$ 20.54
6	12981401W		Cover, Fill Tube (white)				$ 12.62
7	12961602		Cover, Control Box				$ 110.66
8	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 21.33
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 29.02
11	W11573362		Screw   (Replaces: W10339086)				$ 14.02
12	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: W10337634)			Immediately	$ 22.42
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	13000002WD		Hinge, Center (rt) (white)				$ 153.32
16	WPW10456699		Box, Hv Control   (Replaces: W10456699)				$ 124.93
17	12587703W		Cover, Corner (white)				$ 21.81
18	W10485986		Guide, Waterline			Immediately	$ 12.33
19	12999501		Shim, Hinge Top (left Hand)				$ 94.79
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.69
21	W10827867		Knob, Vent Slide   (Replaces: W10331297)		Appelez-nous	-
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 146.34
23	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 81.10
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
25	W11686675		Screw   (Replaces: 12990702)				$ 13.59
26	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
27	WPW10226427		Control, Electronic (power Supply)   (Replaces: W10226427)			Immediately	$ 335.17
28	W10854958		Screw   (Replaces: 12990302)				$ 7.43
29	12957801		Gasket, Control Box		Appelez-nous	-
30	W10211854		Cover, Unit				$ 169.88
31	W10619951		Tube, Drain   (Replaces: W10344402)			Immediately	$ 42.39
32	W10367522		Slide, Mullion Vent		Appelez-nous	-
33	12820505		Insulation				$ 71.70
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.85
35	W11035835		Board, Hv Control   (Replaces: W10467104)			Immediately	$ 478.64
36	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 35.57
37	W10877453		Assembly, Secondary Mullion (white)   (Replaces: W10508288)				$ 277.55
38	W10237349		Lens, Icebox Cover Led		Appelez-nous	-
39	W10679370		Module, Led Light   (Replaces: W10320778)				$ 135.95
40	W10311719		Housing, Module		Appelez-nous	-
41	W10492234		Brace, Mullion		Appelez-nous	-
42	W10311721		Mullion, Secondary		Appelez-nous	-
43	W10316401		Wedge, Spacer (left Hand & Right Hand)		Appelez-nous	-
44	W11697528		Wedge, Spacer (left Hand & Right Hand)   (Replaces: W10316403)		Appelez-nous	-
45	W10208592		Cover, Valve		Appelez-nous	-
10A	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 29.09
13A	W10337647		Cover, Top Hinge (left) (black)			Immediately	$ 22.22
13B	WPW10337648		Cover, Top Hinge (left) (grey)   (Replaces: W10337648)				$ 22.02
15A	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 86.64
15B	W10917988		Hinge, Center (rt) (grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
17A	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17B	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.69
19A	12999502		Shim, Hinge Top (right Hand)				$ 95.81
1A	W10390411		Use & Care Guide		Appelez-nous	-
1B	W10375831		Guide, Energy		Appelez-nous	-
22A	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 147.21
22B	WPW10534155		Grille, Toe (grey)   (Replaces: W10244558)			Immediately	$ 119.56
24A	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 86.64
24B	W10917988		Hinge, Center (lt) (grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
36A	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 35.57
37A	W10877456		Assembly, Secondary Mullion (black)   (Replaces: W10508287)				$ 277.39
37B	W10508289		Assembly, Secondary Mullion (grey)		Appelez-nous	-
5A	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 12962302B)				$ 21.47
5B	WPW10191117		Cover, Top Hinge (right) (grey)   (Replaces: 12962302AP)				$ 21.95
6A	12981401B		Cover, Fill Tube (black)				$ 12.62
6B	W10191141		Cover, Fill Tube (grey)   (Replaces: 12981401AP)				$ 14.34
