View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet/drum
05 - Front Panel/lint Filter
07 - Controls/top Panel
09 - Motor
11 - Burner
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

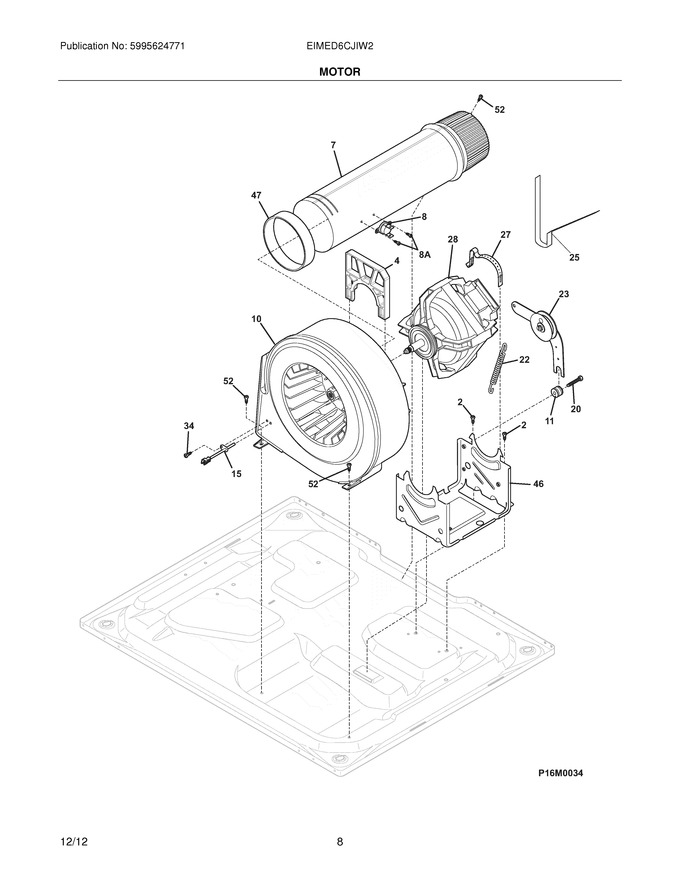

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 4 | 134707900 | Lock,blower Housing |
|
$ 22.05 | |||||
| 7 | 5304509710 | Tube,exhaust ,rear (Replaces: 134693900) |
|
$ 29.93 | |||||
| 10 | 134690800 | Blower,housing ,complete |
|
Immediately | $ 237.76 | ||||
| 11 | 131749800 | Spacer-idler |
|
$ 48.83 | |||||
| 15 | 134711300 | Thermister,exhaust |
|
$ 59.85 | |||||
| 20 | 131017900 | Bolt,hex Head ,1/4-20t X 1.25 ,thread Cutting |
|
$ 16.07 | |||||
| 22 | 131601000 | Spring,idler Arm |
|
Immediately | $ 91.33 | ||||
| 23 | 134793511 | Idler Arm Assy,w/pulley (Replaces: 134793500) |
|
Immediately | $ 49.48 | ||||
| 27 | 134242400 | Clamp,motor Mtg. |
|
Immediately | $ 39.73 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.73 | |||||
| 46 | 134707400 | Bracket,motor Cradle |
|
$ 59.01 | |||||
| 47 | 131633300 | Seal-exhaust Tube |
|
$ 19.06 | |||||
| 52 | 137034600 | Screw,no.10-16x0.375 |
|
- | |||||
| 8A | 134935200 | Screw,no.6 Pan Head ,no.8-32 X .25 ,quadrex |
|
$ 14.96 | |||||
| F25 | 134719300 | Belt,``h`` ,poly V ,5 Rib |
|
Immediately | $ 76.31 | ||||
| F28 | 5304529782 | Motor,main Drive ,115v 60hz (Replaces: 134693300) |
|
Immediately | $ 319.58 | ||||
| F8 | 134711401 | Limiter,thermal Exhaust ,flush Mount |
|
Immediately | $ 39.42 | ||||
| NI | 134693800 | Pulley,motor |
|
$ 16.97 |
