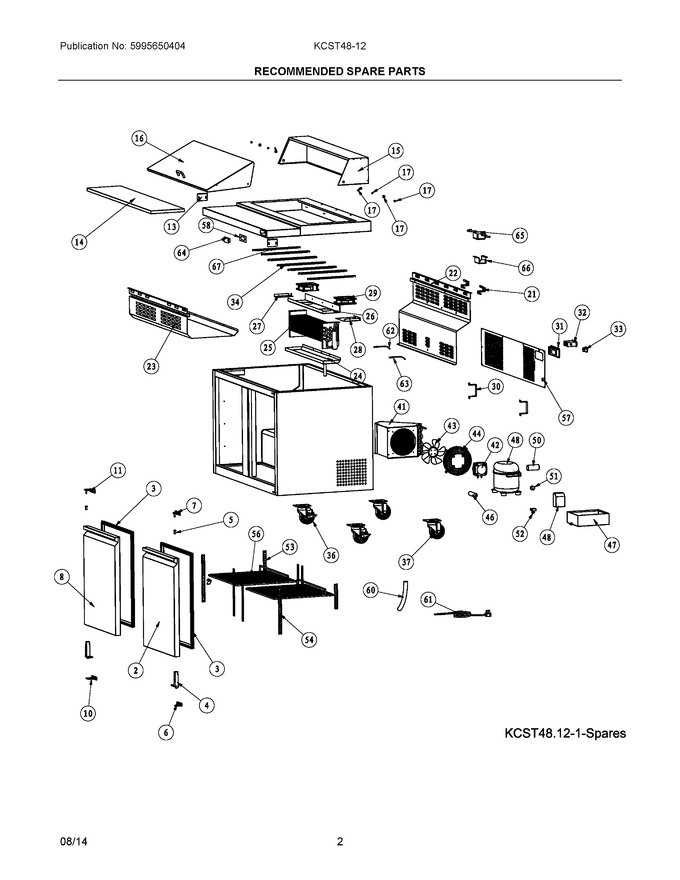

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304493406		Door, Right Side		Appelez-nous	-
3	5304493407		Gasket, Door Seal				$ 101.06
4	5304492217		Door Closer, Hinge Spring		Appelez-nous	-
5	5304493360		Hinge Pin, Door, Upper		Appelez-nous	-
6	5304493361		Hinge, Door, Bottom Right		Appelez-nous	-
7	5304493362		Hinge, Door, Upper Right		Appelez-nous	-
8	5304493408		Door, Left Side		Appelez-nous	-
10	5304493409		Hinge, Door, Bottom Left		Appelez-nous	-
11	5304493410		Hinge, Door, Top Left		Appelez-nous	-
13	5304493363		Bracket, Cutting Board		Appelez-nous	-
14	5304493411		Board, Cutting		Appelez-nous	-
15	5304493499		Hood, Lid		Appelez-nous	-
16	5304493414		Lid		Appelez-nous	-
17	5304493386		Hinge Kit, Hood		Appelez-nous	-
21	5304493368		Support, Air Vent		Appelez-nous	-
22	5304493417		Cover, Evaporator		Appelez-nous	-
23	5304493420		Cover, Air Return		Appelez-nous	-
24	5304493425		Pan, Defrost Drain, Evaporator		Appelez-nous	-
25	5304493426		Evaporator		Appelez-nous	-
26	5304493427		Panel, Fan Motor Mount		Appelez-nous	-
27	5304493429		Support, Evaporator, Left Side		Appelez-nous	-
28	5304493431		Support, Evaporator, Right Side		Appelez-nous	-
29	5304492231		Fan Assy, Evaporator, With Motor		Appelez-nous	-
30	5304493382		Bracket, Stand Off		Appelez-nous	-
31	5304493383		Control Box		Appelez-nous	-
32	5304496527		Controller, Temp, (juchuang)		Appelez-nous	-
33	5304492248		Switch, Power				$ 59.61
34	5304493451		Bracket, End Pan, 25 Mm Wide		Appelez-nous	-
36	5304492261		Caster, 4 Inch Diameter, Locking		Appelez-nous	-
37	5304492262		Caster, 4 Inch Diameter		Appelez-nous	-
41	5304493455		Condenser		Appelez-nous	-
42	5304492359		Motor, Condenser Fan		Appelez-nous	-
43	5304493456		Fan Blade, Condenser Fan				$ 59.01
44	5304493105		Grille, Fan Cover, Condenser		Appelez-nous	-
46	5304493106		Filter-drier		Appelez-nous	-
47	5304493457		Pan, Drain, Condensate		Appelez-nous	-
48	5304493171		Compressor		Appelez-nous	-
50	5304493032		Capacitor, Start		Appelez-nous	-
51	5304493174		Overload		Appelez-nous	-
52	5304493173		Relay/starter		Appelez-nous	-
53	5304493396		Pilaster, Shelf Mount, 3 Screw		Appelez-nous	-
54	5304493397		Pilaster, Shelf Mount, 3 Screw		Appelez-nous	-
56	5304493458		Shelf		Appelez-nous	-
57	5304493459		Panel, Service Access, Rear		Appelez-nous	-
58	5304493400		Plate, Temp Display		Appelez-nous	-
60	5304493401		Tube, Drain, 16 Mm Dia		Appelez-nous	-
61	5304493100		Power Cord, Electric, 115 V		Appelez-nous	-
62	5304492340		Probe, Temp Controller				$ 77.21
63	5304493402		Probe, Temp Display, Fahrenheit		Appelez-nous	-
64	5304493083		Display, Temperature, Fahrenheit		Appelez-nous	-
65	5304493077		Transformer, Temp Display				$ 84.74
66	5304493403		Bracket, Transformer		Appelez-nous	-
67	5304493460		Bracket, End Pan, 15/90 Mm Wide		Appelez-nous	-
NIA	5304492240		Controller, Temp, (carel)		Appelez-nous	-
