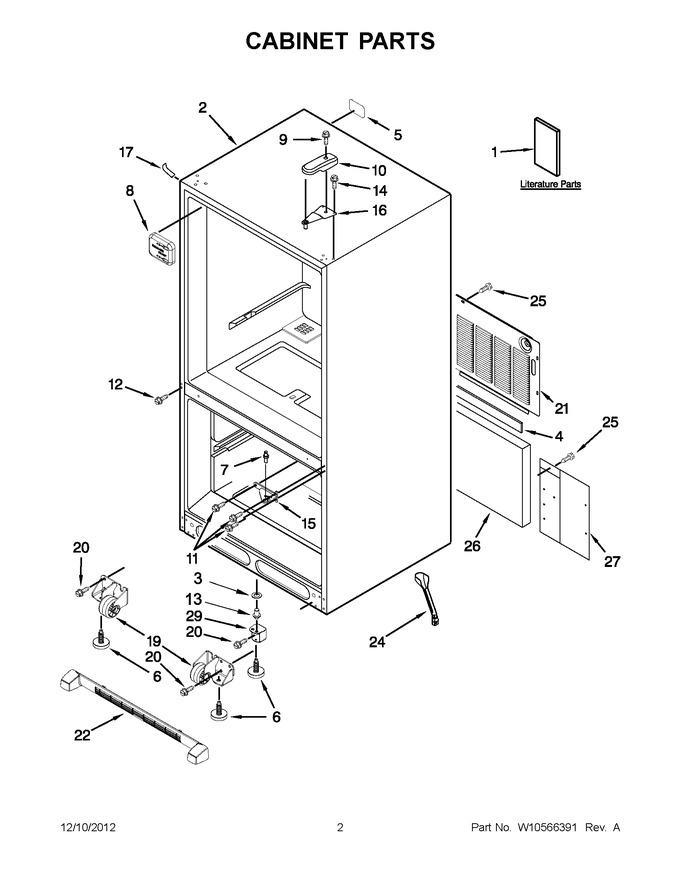

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10325961 | Energy Guide |
|
- | |||||
| 1 | W10517966 | Tech Sheet |
|
- | |||||
| 1 | W10366206SP | Spuse & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPM0274062 | Black (Replaces: M0274062) |
|
Immediately | $ 24.43 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11685757 | Label-fill Tube (Replaces: 12249902) |
|
$ 7.41 | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 10351005) |
|
$ 8.68 | |||||
| 8 | WP67001098 | Cover-fill Tube (Replaces: 12477501) |
|
$ 8.43 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 67001012 | Black (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | 67007018 | Pin, Bottom Hinge (Replaces: 10200802) |
|
Immediately | $ 8.62 | ||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Black (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 67003485 | Black (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 19 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 22 | WPW10534167 | Black (Replaces: W10236650) |
|
$ 94.24 | |||||
| 24 | W10619951 | Tube-drain (Replaces: W10344401) |
|
Immediately | $ 46.23 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 29 | W11820444 | Left Hand (Replaces: W10515763) |
|
Immediately | $ 37.35 |
