| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
13107882WQ |
|
Door, Left (white) (Replaces: 13107882W) |
|
|
|
$ 1,033.88 |
|
|
| 2 |
WPW10170766 |
 |
Badge (Replaces: W10170766) |
|
|
Immediately |
$ 70.50 |
|
|
| 3 |
WP67003637 |
 |
Door, Dairy (Replaces: 12804701SP) |
|
|
Immediately |
$ 82.67 |
|
|
| 4 |
WP67001279 |
 |
Tray, Dairy (Replaces: 12369502SP) |
|
|
Immediately |
$ 88.01 |
|
|
| 5 |
WP67006313 |
 |
Bucket, Chiller Top (Replaces: 12945801SP) |
|
|
Immediately |
$ 84.62 |
|
|
| 6 |
67006425 |
 |
Screw (Replaces: 12990513) |
|
|
Immediately |
$ 7.30 |
|
|
| 7 |
WPW10661886 |
 |
Screw (Replaces: W10460893) |
|
|
Immediately |
$ 12.88 |
|
|
| 8 |
W11501500 |
|
Gasket, Door Left Hand (white) (Replaces: W10830050) |
|
|
|
$ 285.66 |
|
|
| 9 |
13004701W |
 |
Handle, Door (white) |
|
|
|
$ 193.97 |
|
|
| 10 |
13107853WQ |
|
Door, Right (white) (Replaces: 13107853W) |
|
|
|
$ 1,037.75 |
|
|
| 11 |
W10275942 |
|
Tube, Water |
|
|
Immediately |
$ 120.27 |
|
|
| 12 |
12840005 |
|
Bucket, Gallon |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WPW10287601 |
 |
Seal, Ice Chute (Replaces: W10287601) |
|
|
Immediately |
$ 32.76 |
|
|
| 14 |
WP12722813W |
 |
Mullion, Door (white) (Replaces: 12732503W) |
|
|
|
$ 341.27 |
|
|
| 15 |
W11266639 |
|
Frame, Chiller (rear) (Replaces: 12945601SP) |
|
|
|
$ 269.63 |
|
|
| 16 |
WP67003638 |
 |
Closure, Door (white) (Replaces: 12028505W) |
|
|
Immediately |
$ 8.15 |
|
|
| 17 |
12968202W |
 |
Stop, Door (white) |
|
|
|
$ 69.29 |
|
|
| 18 |
W11266639 |
|
Frame, Chiller (front) (Replaces: 12945501SP) |
|
|
|
$ 269.63 |
|
|
| 19 |
12996601 |
|
Clip, Bushing |
|
|
|
$ 10.05 |
|
|
| 20 |
WP67006312 |
 |
Door, Chiller (Replaces: 12945701SP) |
|
|
Immediately |
$ 86.29 |
|
|
| 21 |
WP98165 |
 |
Screw (Replaces: 12990521) |
|
|
|
$ 8.57 |
|
|
| 10A |
13107853Q |
|
Door, Right (biscuit/bisque) |
|
Appelez-nous
|
- |
|
|
|
| 14A |
12732503Q |
|
Mullion, Door (biscuit/bisque) |
|
Appelez-nous
|
- |
|
|
|
| 17A |
12968202Q |
|
Stop, Door (biscuit/bisque) |
|
Appelez-nous
|
- |
|
|
|
| 1A |
13107882QQ |
|
Door, Left (biscuit/bisque) (Replaces: 13107882Q) |
|
Appelez-nous
|
- |
|
|
|
| 8A |
W11396037 |
 |
Gasket, Door Right Hand (white) (Replaces: W10830057) |
|
|
|
$ 312.66 |
|
|
| 9A |
67006982 |
|
Handle, Door (biscuit/bisque) (Replaces: 13004701Q) |
|
|
|
$ 198.40 |
|
|

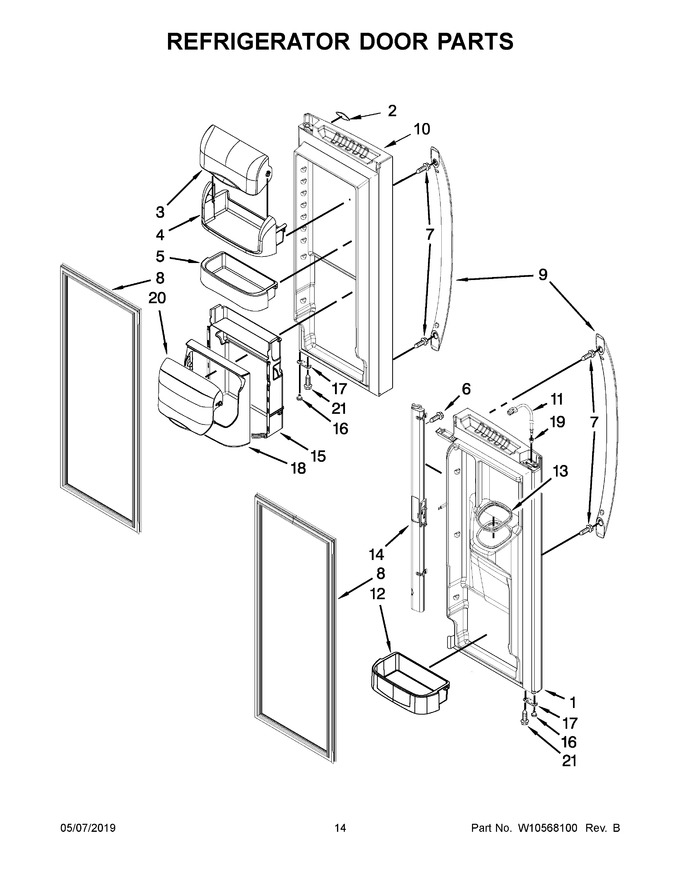

View Diagram in Separate Window
